1-Watt termination for high-power RF and microwave transmitters introduced by Coaxicom

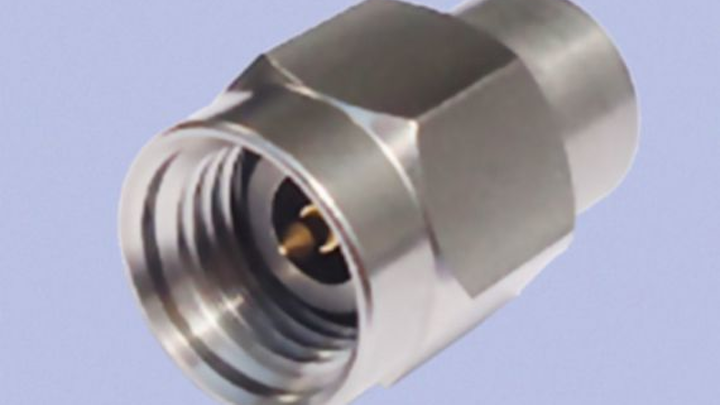

STUART Fla., 3 March 2015. Coaxial Components Corp. (Coaxicom) in Stuart, Fla., is introducing the 1-Watt 022900M-9 2.92-millimeter termination designed to minimize reflected power that often impedes transmission quality.

Mar 3rd, 2015
By Mil & Aero staff
By Mil & Aero staff

STUART Fla., 3 March 2015. Coaxial Components Corp. (Coaxicom) in Stuart, Fla., is introducing the 1-Watt 022900M-9 2.92-millimeter termination designed to minimize reflected power that often impedes transmission quality.

Used across a spectrum of multi-port RF and microwave devices including directional couplers, isolators, and high-power transmitter applications, terminations absorb energy and prevent RF signals from reflecting back from open-ended or unused circuit ports.

The termination is spec'd at DC-40 GHz, with VSWR of 1.25:1 max. The low thermal impedance of the 022900M-9 enables it to dissipate 1 watt average power conservatively at 25 degrees Celsius.

It operates in temperatures from -65 125 C, and derates linearly to 0 at 125 C. Peak power is 250 Watts. The coupling nut is stainless steel and is available in either a gold plated or passivated finish.

Related: Direct-solder versions of phase-adjustable RF and microwave connectors offered by Coaxicom

For more information contact Coaxicom online at www.coaxicom.com.
