Power supplies for high-rel diagnostic and monitoring equipment introduced by TDK Lambda

SAN DIEGO, 18 June 2015. TDK-Lambda Americas Inc. in San Diego is introducing the TDK-Lambda DTM165 adapter power supplies for diagnostic and monitoring equipment in high-reliability applications like hospitals and health care. The product also meets the required efficiency level V standards for medical equipment.

Jun 18th, 2015
By Mil & Aero staff
By Mil & Aero staff

SAN DIEGO, 18 June 2015. TDK-Lambda Americas Inc. in San Diego is introducing the TDK-Lambda DTM165 adapter power supplies for diagnostic and monitoring equipment in high-reliability applications like hospitals and health care. The product also meets the required efficiency level V standards for medical equipment.

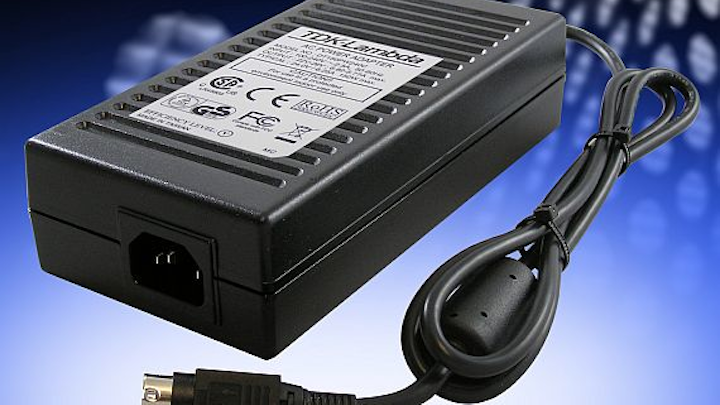

The DTM165 is housed in a rugged, vent-free enclosure, measuring 170 by 85 by 44 millimeters. AC is applied using a standard IEC60320-C13 cable and DC provided through a four pin Power-DIN connector. Other connectors are available on request. The adapters also feature over-voltage and over-current protection.

Accepting a 90 to 264 volts AC input, the 160 to 165-Watt adapters are available with 12-, 15-, 19-, 24-, 28-, 36-, and 48-volt outputs and can operate in ambient temperatures ranging from 0 to 60 degrees Celsius.

In addition to satisfying CEC, ERP, and EISA requirements with an average efficiency of greater than 87 percent, the power supplies have an off-load power draw of less than 0.5 Watts.

Related: Low-profile power supplies for industrial, test and measurement applications introduced by TDK Lambda

The DTM165 series conforms to the IEC 60601-1 3rd edition medical standard with 4-kilovolt AC input to output isolation (2 x MOPPs) and 1.5 kilovolts AC (1 x MOPP) between input to ground.

The series has been certified to ANSI/AAMI ES 60601-1, CAN/CSA-C22.2 No. 60601-1-08, EN 60601-1 and carries the CE mark. All models meet EN 55011-B, FCC Class B conducted & radiated emissions and EN 60601-1-2 immunity standards.

For more information contact TDK Lambda online at www.us.tdk-lambda.com.
