Sikorsky prepares to build new batch of large CH-53K helicopters, avionics, and communications for Israel

March 21, 2022

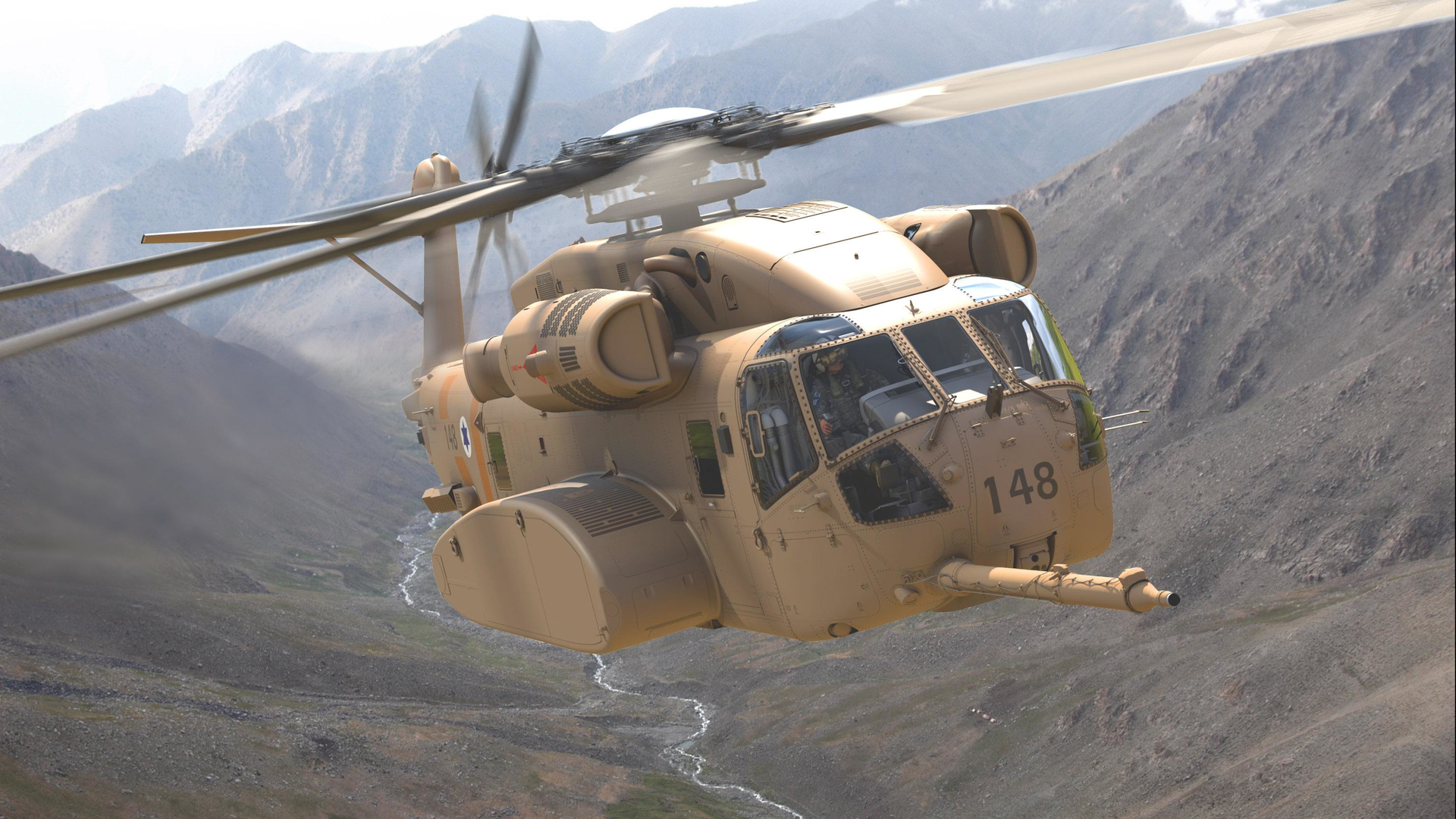

The CH-53K long-range helicopter provides three times the lift capability of the CH-53E, and can carry armored vehicles, equipment, and personnel.

PATUXENT RIVER NAS, Md. – Engineers at Sikorsky Aircraft Corp. in Stratford, Conn., are preparing to build CH-53K King Stallion heavy-lift helicopters and integrated avionics systems for the government of Israel.

Officials of the U.S. Naval Air Systems Command at Patuxent River Naval Air Station, Md., announced a $52.5 million order to Sikorsky on Thursday for long lead items in support of full-rate-production lot-7 CH-53K aircraft for the Israeli military.

The CH-53K King Stallion is a large cargo helicopter designed to replace the Marine Corps fleet of CH-53E heavy-lift helicopters to help move Marines and their equipment from ships offshore onto attack beaches. The CH-53K is a general redesign of the CH-53E.

Long-lead items either are difficult and time-consuming to obtain, and are funded early in the aircraft design process to keep overall production on schedule. Contracts to build the missile will come later.

Related: Boeing wins order for AH-64E Apache Guardian attack helicopters, avionics, and communications for Morocco

The CH-53K sea-based long range helicopter is designed to provide three times the lift capability of its predecessor. The CH-53K will conduct expeditionary heavy-lift transport of armored vehicles, equipment, and personnel to support distributed operations deep inland from a sea-based center of operations, Sikorsky officials say. It can lift more than 18 tons.

The CH-53K will have new engines and cockpit avionics layout, and will have more than twice the lift capacity and combat radius of the CH-53E. A wider cargo hold to enable the new aircraft to carry a light combat vehicle internally, and will have new composite rotor blades. It will use the General Electric GE38-1B engine.

It can operate at high altitudes, hot temperatures, and in degraded visual conditions; sling load 36,000 pounds; can fly faster than 200 knots; can make 60-degree-angle bank turns; can climb to 18,500 feet above sea level; conduct 12-degree slope landings and takeoffs; and can auto-jettison external loads, and survive gunfire.

Related: Wanted: open-systems avionics for future Army helicopters

The CH-53K first flew in late 2015, and the helicopter was introduced to Marine Corps squadrons in 2018. The Marines plan to buy 227 CH-53K helicopters for about $23.3 billion.

The Raytheon Technologies Corp. Collins Aerospace segment in Cedar Rapids, Iowa, is providing the CH-53K's avionics management system; Sanmina-SCI Corp. in San Jose, Calif., is providing the new helicopter's intercommunications System; and Spirit AeroSystems in Wichita, Kan., is providing the CH-53 cockpit and cabin. Other major subcontractors are GKN Aerospace in Redditch, England; and Onboard Systems International in Vancouver, Wash.

Collins Aerospace is providing the company's Common Avionics Architecture System (CAAS) for the CH-53K. The CAAS integrates several communications, navigation and mission subsystems through its Flight2 system. It uses common reusable processing elements in an open-systems architecture based on commercial standards.

Related: Northrop Grumman to provide networking data link for helicopters

The Collins Aerospace CAAS avionics initially was developed for the Special Operations Forces' MH-47 and MH-60 helicopter fleets. In addition to the CH-53K, CAAS avionics also has been selected for the CH-47F, MH-60T, MH-65E, and VH-60N aircraft.

The Sanmina-SCI FireComm Intercommunications Control System for the CH-53K uses digital processing techniques and controls. Its system architecture uses the MIL-STD-1553 avionics data bus; the IEEE 1394b data bus; 10/100 Base-T Ethernet; and TIA/EIA-485 interface ports.

On this order Sikorsky will do the work in Stratford, Conn., and should be finished by December 2022. For more information contact Sikorsky Aircraft online at www.lockheedmartin.com/en-us/capabilities/sikorsky.html, or Naval Air Systems Command at www.navair.navy.mil.
