ALTAMONTE SPRINGS, Fla. – Image processing specialist EIZO Rugged Solutions Inc. in Altamonte Springs, Fla., is introducing the Condor GR5-P2000 3U VPX graphics and general-purpose graphics processing unit (GPGPU) card for military and aerospace rugged embedded computing applications.
The GR5-P2000 offers graphics and GPGPU capability while delivering as much as 2.3 trillion floating point operations per second (TFLOPS) of CUDA processing power.

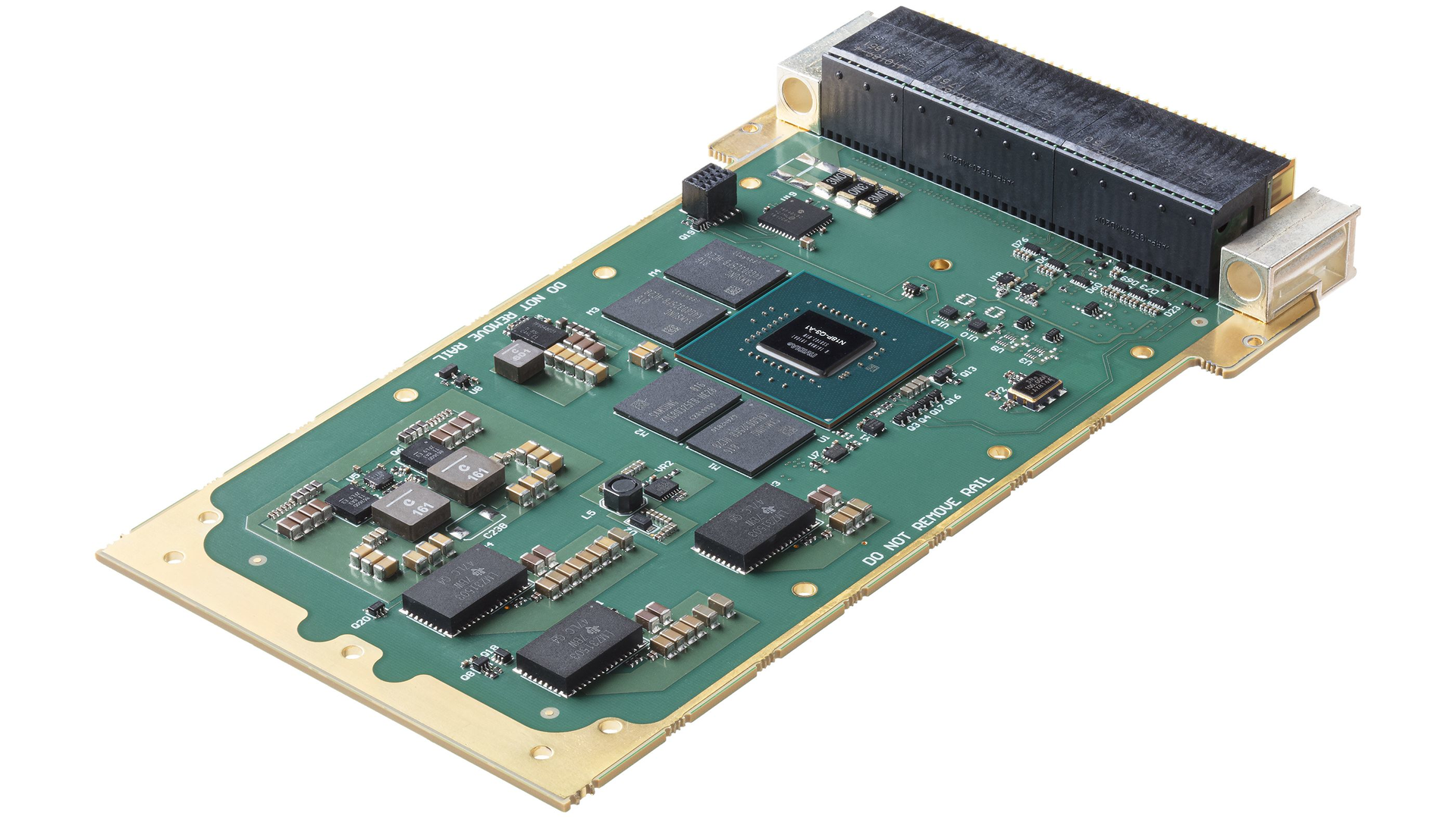

The Condor GR5-P2000 3U VPX embedded computing card features a chip-down implementation of the NVIDIA Pascal Quadro P2000 (GP107) technology to improve the card's thermal dissipation profile and offer extended availability
The MIL-STD-810G-certified card features two output configurations: two DisplayPort++ and two Single-Link DVD-D or four Single-Link DVD-D outputs -- all available from the rear P2 VPX connector.
DisplayPort++ gives the option to support high-resolution monitors resolution as fine as 4K at 120 Hz. The board can consume as much as 80 Watts of power, depending on the application.
The Condor GR5-P2000 3U VPX is a conduction- or air-cooled 3U VPX card that support PCI Express 3.0 (16, 8, or 4 lane) when mated with compatible single board computers. The card also features H.265 encode and decode capability, supports NVIDIA CUDA 10 and OpenCL 1.2, and offers 4 GB GDDR5 graphics memory with NVIDIA GPUDirect DMA.
For more information contact EIZO Rugged Solutions www.eizorugged.com.
