Navy asks Northrop Grumman to build 228 avionics mission computers for AH-1Z Viper and UH-1Y helicopters

Aug. 27, 2020

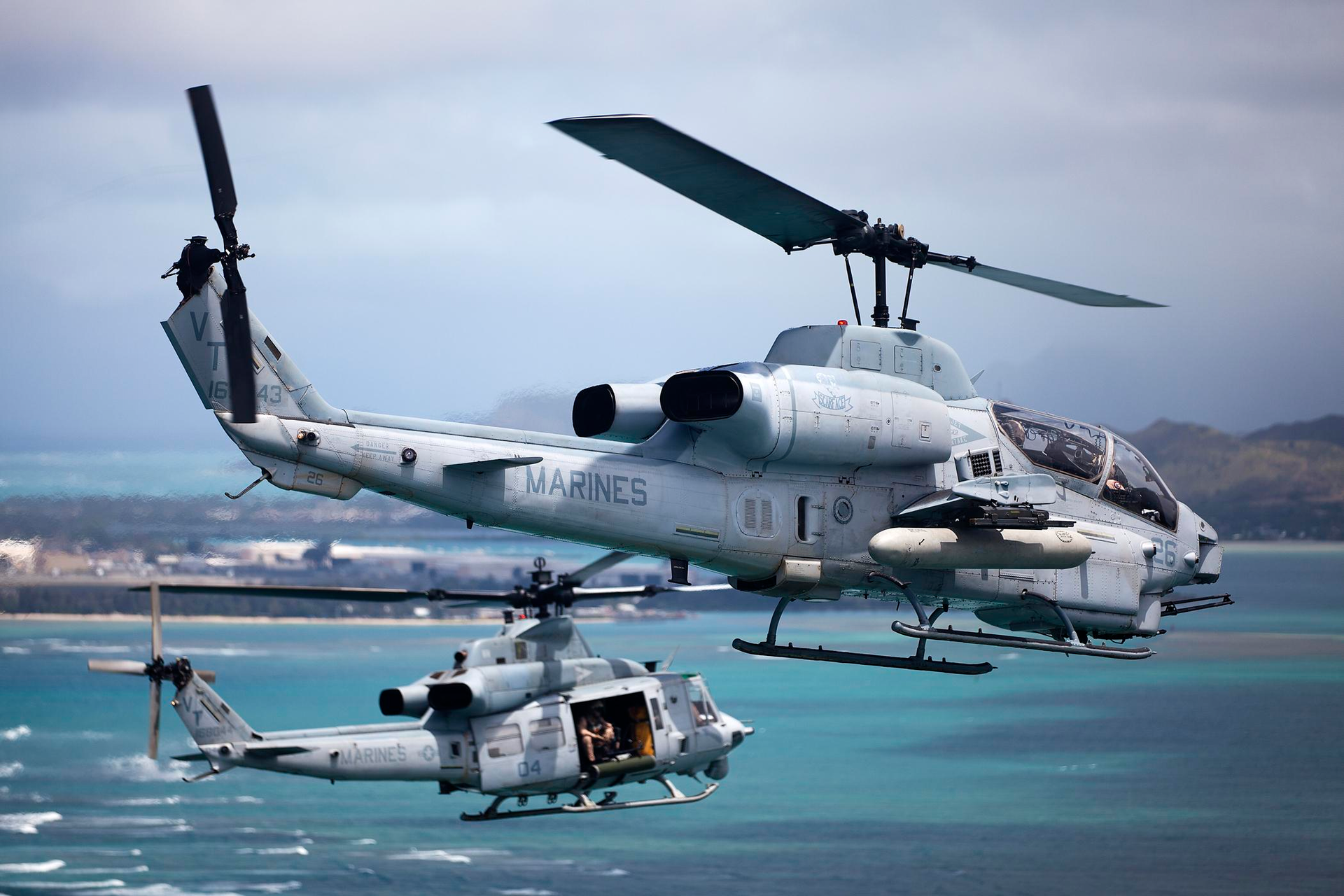

Northrop Grumman Gen III mission computers are at the heart of the company's avionics system that powers the glass cockpit avionics of AH-1Z and UH-1Y.

PATUXENT RIVER NAS, Md. – Avionics and flight computer experts at Northrop Grumman Corp. will provide FlightPro Gen III scalable mission computers for the U.S. Marine Corps AH-1Z Viper attack helicopter and UH-1Y utility helicopter under terms of a $44.6 million order announced Thursday.

Officials of the U.S. Naval Air Systems Command at Patuxent River Naval Air Station, Md., are asking the Northrop Grumman Mission Systems segment in Woodland Hills, Calif., to provide an additional 228 H-1 technical refresh mission computers for the AH-1Z and UH-1Y.

The Northrop Grumman Gen III mission computers are at the heart of the company's integrated avionics system that powers the glass cockpit avionics of the Bell AH-1Z and UH-1Y helicopters.

The order increases the planned quantity of FlightPro Gen III mission computers for the Marine Corps helicopters from 545 to 773 for U.S. and foreign military sales UH-1Y and AH-1Z helicopters.

Related: Navy asks EFW to build 132 avionics mission computers for Navy and Air Force V-22 Osprey tiltrotor aircraft

The conduction-cooled Gen III mission computer has a ruggedized 6U VME PowerPC-based single board computer. Interfaces include Fast Ethernet, four serial ports, parallel I/O, and built-in-test. It has a standard partitioned real-time operating system called INTEGRITY-178 tuMP for multicore architectures from Green Hills Software in Santa Barbara, Calif., with ARINC 653 and POSIX support.

The the AH-1Z and UH-1Y mission computer's standard configuration for avionics also includes a quad channel 1553 mezzanine card, high-speed serial card, digital I/O module with eight channels of opto-coupled discrete inputs, eight channels of opto-coupled discrete outputs, and 16 channels of general-purpose bi-directional discretes that can be programmed individually as embedded computing outputs or inputs.

The flight computers use 28-volt DC or 115-volt AC three-phase 400 Hz input power, measure 13.61 by 11.5 by 7.55 inches, and weigh 30.4 pounds. The computers have rated 3,200 hours mean time between failures.

Related: Northrop Grumman gets order for more VME-based helicopter aviation mission computers

The Gen III computer software is RTCA DO-178C compliant, has ARINC-653 partitioning for safety and security, and complies with the Modular Open Systems Architecture (MOSA) standard. The software is aligned with the Future Airborne Capability Environment (FACE) technical standard, has hardware-independent application software developed to MIL-STD-498, under MIL-STD-882C safety program environmental qualification.

Flight computer hardware is designed to MIL-STD-461D for electro-magnetic compatibility, and is tested to MIL-STD-462 and MIL-STD 810E. FlightPro is conduction cooled, and represents “Quiet Cockpit Technology,” Northrop Grumman officials say.

Dual mission computers are part of Northrop Grumman's integrated avionics aboard the AH-1Z and UH-1Y. The mission computers provide centralized control of the helicopter avionics, displays, situational awareness, and health monitoring.

Related: Army asks industry for open-systems avionics technologies for future attack and reconnaissance helicopters

Additionally, the helicopter avionics and mission computers can accommodate future system upgrades; rapid insertion of new technologies; and integration of other avionics, communications, and survivability equipment. Northrop Grumman also provides the operational flight program software that controls the AH-1Z and UH-1Y avionics.

The H-1 Upgrade program is replacing aging AH-1W and UH-1N helicopters with upgraded UH-1Y and AH-1Z aircraft to enhance commonality, reliability, and maintainability. The upgraded helicopters have 100 percent software commonality through Northrop Grumman's IAS and the same operational flight program.

On this order Northrop Grumman will do the work in Salt Lake City; Baltimore; and Woodland Hills, Calif., and should be finished by December 2023. For more information contact Northrop Grumman Mission Systems online at www.northropgrumman.com, or Naval Air Systems Command at www.navair.navy.mil.
