Rugged network attached storage for military and aerospace uses introduced by Elma

FREMONT, Calif., 5 Aug. 2015. Elma Electronic Inc. in Fremont, Calif., is introducing the StorSys-3000 high-capacity network attached storage (NAS) mission system that withstands harsh, rugged environments for IP-based military and defense applications.

Aug 5th, 2015
By Mil & Aero staff
By Mil & Aero staff

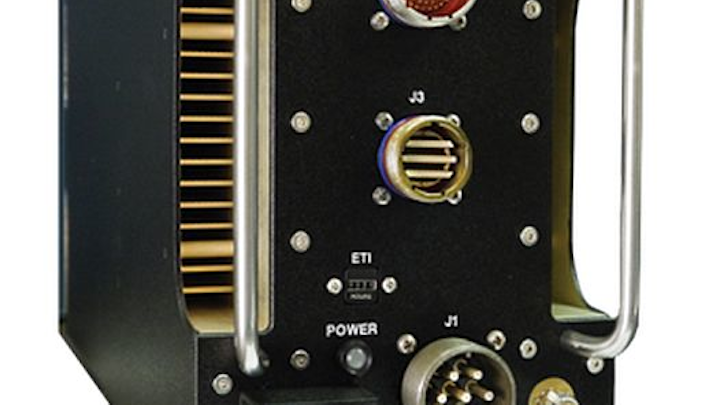

FREMONT, Calif., 5 Aug. 2015. Elma Electronic Inc. in Fremont, Calif., is introducing the StorSys-3000 high-capacity network attached storage (NAS) mission system that withstands harsh, rugged environments for IP-based military and defense applications.

The 3U VPX computer includes dual 10 Gigabit Ethernet ports with integrated TCP/IP offload engines. These ports, as well as additional I/O such as a VGA, two USB 2.0, three GPIO and an additional two Gigabit Ethernet ports, flow through MIL-C-38999 connectors on the front end.

The solid-state data storage unit is for high-bandwidth, intensive data processing and storage applications in military applications like electronic warfare (EW), radar, thermal, hyperspectral, and sonar imaging, as well as signals intelligence (SIGINT).

A four slot storage array supports more than eight terabytes of solid state MLC storage with RAID protection and high-speed data access speeds of 1.2 gigabytes per second. The Intel Gen 3 Core i7 CPU clocks in at 2.5 GHz.

Designed for extended temperature ranges from -40 to 75 degrees Celsius, the system incorporates fanless, conduction cooling and a high CFM front-to-back air flow for added heat dissipation. An IP65 rating and high ingress protection ensures internal and external system reliability.

Related: High-speed controller and storage module for defense and industrial uses introduced by Elma

The system can be equipped with other CPU and storage options to suit specific applications. Backplane options range from five to nine slots.

For more information contact Elma Electronic online at www.elma.com.
