Spring-loaded pins for applications that require electrical isolation introduced by Mill-Max

OYSTER BAY, N.Y., 5 Oct. 2015. Mill-Max Manufacturing Co., in Oyster Bay, N.Y., is introducing the 0907 series of discrete insulated spring-loaded pins for applications that require electrical isolation.

By Mil & Aero staff
By Mil & Aero staff

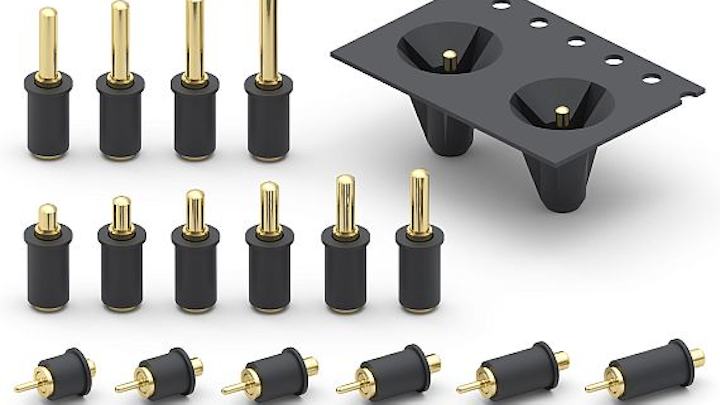

OYSTER BAY, N.Y., 5 Oct. 2015. Mill-Max Manufacturing Co., in Oyster Bay, N.Y., is introducing the 0907 series of discrete insulated spring-loaded pins for applications that require electrical isolation.

The SMT pin interconnect products come in 10 heights from .255 inches to .430 inches with a working travel of .0275 inches. The company's 0906 series comes in six heights from .137 inches to .236 inches with a working travel of .0195 inches and .0275 inches.

The plastic sleeve provides insulation of the spring pin terminal for situations such as passing through a printed circuit board or conductive housing, or for isolating the pin from surrounding conductive components or elements in an assembly.

The pins are available in bulk or on 16-millimeter carrier tape for automated pick-and-place assembly. The insulator sleeve keeps the component stable in the pocket to facilitate the pick-and-place process.

Related: Target connectors and pins for mating surface for spring-loaded pins on boards offered by Mill-Max

The high temperature nylon 46 insulators are suitable for RoHS soldering processes. The spring pins are constructed of precision-machined, gold-plated components and gold-plated beryllium copper springs. All are rated at 2 amps continuous, 3 amps peak and have a mechanical life of one million cycles.

For more information contact Mill-Max online at www.mill-max.com.
