Rugged 3U CompactPCI Core i7/i5-based embedded computing board introduced by Concurrent Technologies

WOBURN, Mass., 15 May 2015. Concurrent Technologies Inc. in Woburn, Mass., is introducing the TP B1x/3sd 3U CompactPCI embedded computing board, based on 4th generation Intel Core i7/i5 processor, for aerospace and defense applications.

By Mil & Aero staff
By Mil & Aero staff

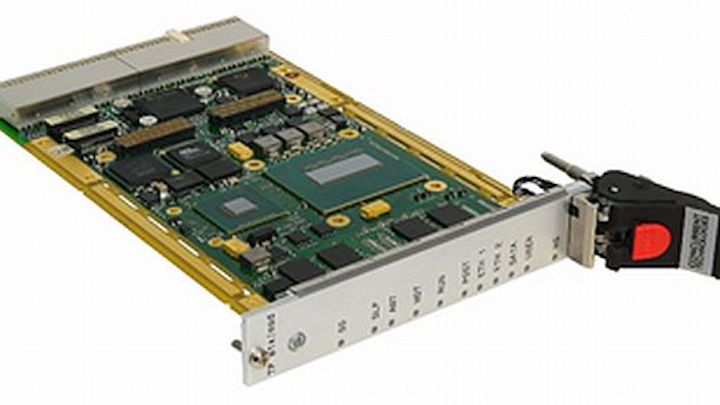

WOBURN, Mass., 15 May 2015. Concurrent Technologies Inc. in Woburn, Mass., is introducing the TP B1x/3sd 3U CompactPCI embedded computing board, based on 4th generation Intel Core i7/i5 processor, for aerospace and defense applications.

Depending on the application requirements, two processor options are offered as standard: the 4-core Intel Core i7-4700EQ at up to 3.4 GHz and the 2-core Intel Core i5-4422E at up to 2.9 GHz.

TP B1x/3sd is designed to give existing customers an upgrade path for long life-cycles with a performance boost. TP B1x/3sd is available with as much as 16 gigabytes of DDR3L-1600 DRAM with error correcting code (ECC) and the memory is soldered down on the board for applications in adverse conditions.

For security-sensitive applications there is the option to specify a Trusted Platform Module (TPM) along with Concurrent Technologies proven board level security package.

Related: Navy chooses 6U CompactPCI single-board computers from Concurrent for LCAC C4N

Other optional software has include Fast Boot and Built-In Test firmware along with board support packages for popular operating systems like Linux, Windows and VxWorks. There is an option to populate TP B1x/3sd with a high speed, removable Flash drive which is screw mounted for additional reliability.

TP B1x has an optional XMC site, two Gigabit Ethernet ports, two SATA disk interfaces, USB Serial and General Purpose I/O (GPIO) expansion as well as optional graphics to the backplane. These rear I/O interfaces are backwards compatible with both the TP 702/38x and TP 402/35x series family.

Commercial and extended-temperature versions are available and a ruggedized conduction-cooled version will be available shortly. For more information contact Concurrent Technologies online at www.gocct.com.
