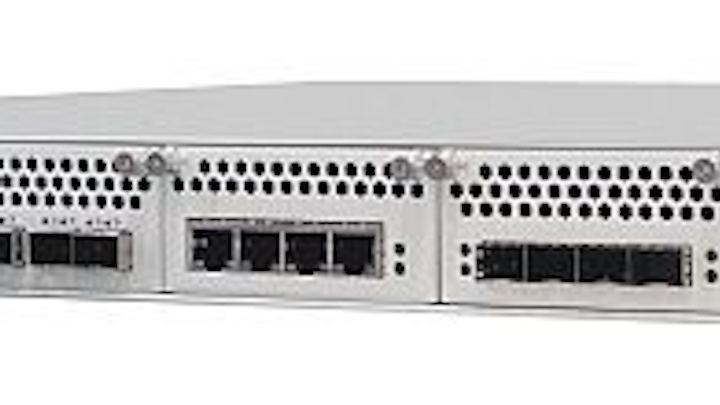

The PL-80930 is based on the Intel Haswell-EP , a member of the Xeon E5-2600 V3 processor family coupled with the Intel C612 series chipset (code-named Wellsburg). This generation provides high CPU computing power with computing cores ranging from 6 to 18 cores. Unit supports 45-megabyte cache and total with 40 PCI Express lanes to support LAN expansion or additional encryption/decryption cards.
The PL-80930 provides high computing performance and system responsiveness with Intel E5-2600 V3 processor, supporting eight DDR4 ECC RDIMM/LRDIMM (to 2133 MHz) and maximum memory capacity up to 256 gigabytes.
With 40 PCI Express lanes, the PL-80930 is able to support as many as 4 NIC modules with several Ethernet module bays for 40G QSFP+, 10G SFP+, Gigabit Ethernet SFP, and support for Gigabit Ethernet Gen 3 Bypass function.
The system can support as many as 32 Gigabit Ethernet ports. I/O elements include two management Ethernet ports, one for management, another for optional IPMI support, a console port, two USB ports, and a LCD module with 5-button keypad, LEDs for power/hard drive/2x GPO.
In addition, the PL-80930 supports two 2.5-inch SATA or one 3.5-inch and one 2.5-inch hard drives or solid-state drives, onboard CompactFlash slot and SATA DOM connector for basic network storage application.
The PL-80920 includes two management Ethernet ports (one for management, another for optional IPMI function), a console port, two USB ports, an LCD module, and a 5-button keypad.
LEDs monitor power, hard drive, with 2 for general purpose I/O. In addition, the unit supports two front-swappable 2.5-inch SATA hard drives or solid-state drives, and onboard CompactFlash for basic network storage applications.
WIN Enterprises will work with OEM solutions providers to modify this COTS design to their specifications. For more information contact WIN Enterprises online at www.win-ent.com.
