The A/D converters are available in three temperature ranges: 0 to degrees Celsius; -40 to 100 C; and -55 to 125 C. The device is available in commercial as well as military/high-reliability temperature versions.

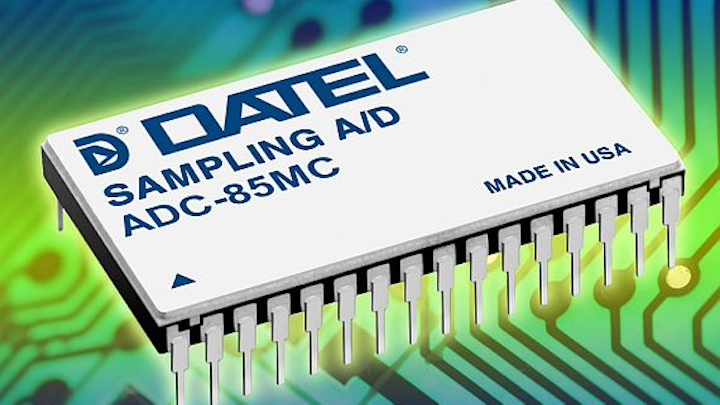

The ADC-85 series are 12-bit, 8-microsecond-conversion-time A/D converters housed in a hermetically sealed 32-pin side-brazed DDIP or gull-wing SMT ceramic package.
The ADC-85 has five analog input ranges and offers parallel and serial digital outputs. It can be short-cycled to give faster conversions in lower-resolution applications.
Benefits include an internal buffer amplifier for applications in which high input impedance is required. Output coding is complementary binary, complementary offset binary, or complementary two's complement.
With differential and integral non-linearity specifications, the ADC-85 is pin-for-pin compatible with the ADC84, ADC85, MNADC87, HSADC85, and MNADC85 series.
883 and DSCC/DLA-compliant models are included in this family and are available under drawing number 5962-8850802XC for gold pins and 5962-8850802XA for solder-dipped pins. RoHS and non-RoHS versions are available.
The ADC-85 series is manufactured in DATEL's USA facility which is certified to MIL-PRF-38534 standards. For more information contact DATEL online at http://www.datel.com/.
