AMC embedded computing mezzanine card with Xilinx FPGA and two FMC sites introduced by VadaTech

HENDERSON, Nev. – VadaTech Inc. in Henderson, Nev., is introducing the AMC580 field-programmable gate array (FPGA) embedded computing Advanced Mezzanine Card (AMC) with Xilinx Zynq UltraScale+ (XCZU19EG) FPGA and dual VITA 57 FPGA mezzanine card (FMC) sites.

Dec 4th, 2017
By Mil & Aero staff
By Mil & Aero staff

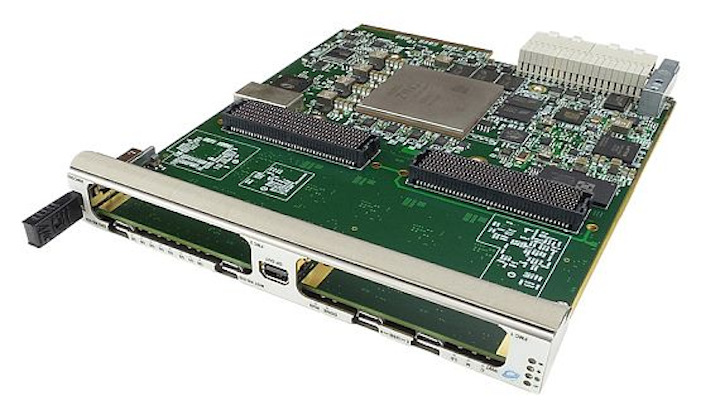

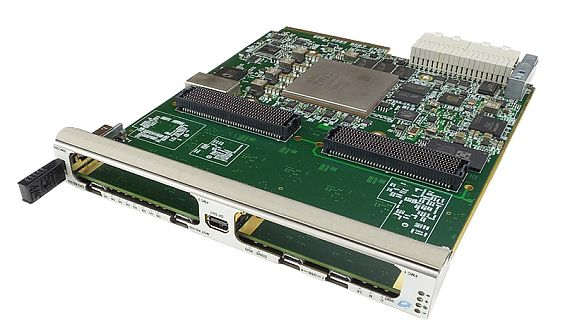

HENDERSON, Nev. – VadaTech Inc. in Henderson, Nev., is introducing the AMC580 field-programmable gate array (FPGA) embedded computing Advanced Mezzanine Card (AMC) with Xilinx Zynq UltraScale+ (XCZU19EG) FPGA and dual VITA 57 FPGA mezzanine card (FMC) sites.

The module supports flexible clocking with on-board jitter cleaner, and the FPGA connects to DP0-9 and all FMC LA/HA/HB pairs on both FMC sites.

The FPGA has an interface to one DDR4 memory channel (64-bit wide with ECC) which allows for storing large buffer sizes during processing. The module has 64 gigabytes of Flash memory on board, 128 megabytes of boot flash, and an SD Card as an option.

The rear transition module (RTM) pinout is compatible with the DESY D1.2 recommendation, for compatibility with a wide range of off-the-shelf RTMs.

AMC580 is based on the Xilinx UltraScale+ XCZU19EG MPSoC FPGA which has a quad-core ARM processor, dual-core Cortex-5 and a graphics processing unit.

The EG devices have the specialized processing elements for next-generation wired and 5G wireless infrastructure, while the ZU19 has 1968 DSP slices and 1143k logic cells.

For more information contact VadaTech online at www.vadatech.com.
