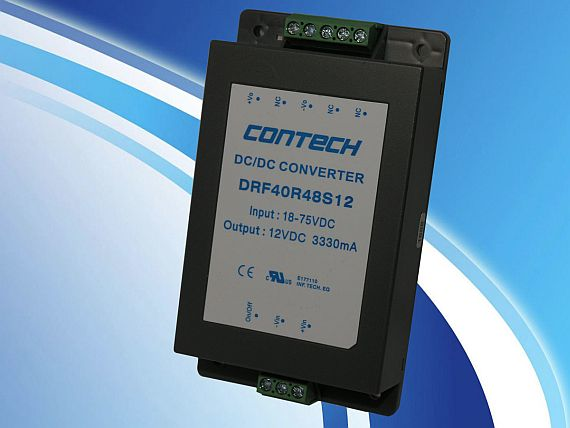

CONCORD, Calif. – ConTech in Concord, Calif., is introducing the DRF series of chassis mount DC-DC converters for ruggedized backplane applications as a power solution in a large assortment of applications.
ConTech, a Division of Calex Mfg. Co. Inc., offers the DRF series that has 40 Watts of output power in an encapsulated case. It has an optional din-rail mount and easily accessible terminal blocks.
The DRF series offers output voltages from 5.1 to 48 volts DC, with input ranges of 9 to 36 and 18 to 75 volts DC, while achieving efficiencies to 92 percent.
The series has output over-voltage and short circuit protection, and the units are encapsulated with a thermally conductive potting compound in a plastic resin and fiberglass case that meets UL94V-0.
The enclosed case has external terminal blocks for ease of connection and is chassis mountable. Adding optional accessory DIN-02 base plate converts the chassis mount case to a standard din-rail mount.
The DRF series is rated for 2500 volts DC isolation, is UL approved, and is RoHS compliant.
For more information contact ConTech online at www.contech-us.com.
