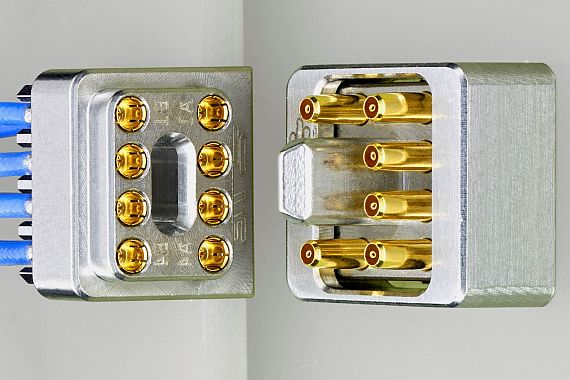

This high-frequency nanominiature coax contact is engineered with small contacts and a high RF contact density within a multi-position module.
This design enables relatively small packaging and saves valuable space. Half-size modules can support as many as 12 RF contacts and full-size modules can support 18 or more contacts, with the option to customize contact count and position.
TE's NanoRF modules offer blind-mateable, float-mounted backplane contacts that support module-to-module or box-to-box architectures. The nanominiature contact is designed for 0.047-inch coax cable, yet several cable types are available.
To bring high-frequency capability into a high-density modular package, the contacts are optimized for signal integrity and support frequencies as high as 70 GHz.
The rugged NanoRF's design features a floating insert on the backplane side, with guide features to pre-align the array of contacts before they engage. The device offers as many as 500 mating cycles.
For more information contact TE Connectivity online at www.te.com.
