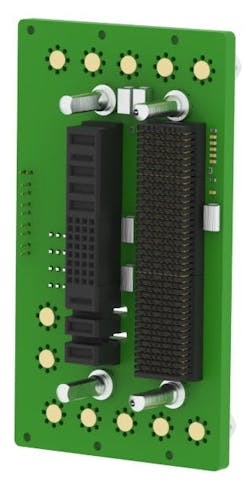

3U OpenVPX 2-Slot Backplane with 1 VPX Power and Ground plus 1 VITA 62 power supply slot

This 3U Open VPX backplane offers one VITA 46 Power and Ground slot and one VITA 62 power supply slot to support the development and deployment of systems requiring a VITA 62 power supply. The rear power studs can be used to connect to an adjacent backplane to feed it power. Discover OpenVPX architecture: https://www.elma.com/en/capabilities/openvpx

• Power and Ground Slot: Compliant to the latest VITA 46 / 65 specifications | For simple and low-cost development | 3.3V, 5V, and 12V power | P0 - P2 pins are user-defined | Backplanes have the utility plane implemented in P0 and the System Management bus routed to 2 headers | NVMRO, SYSRESET#, SYSCON# and maskable reset are routed to 3 headers
• Power Interface Slot: Complies with VITA 62.0 and VITA 62.2 (allowing separators/insulators to be installed on demand) | PSU slot outputs and VDC inputs via #8-32 power studs | Header for various control signals like voltage sense, current share, IPMB interface, inhibit, enable and fail, etc | Selectable geographical addressing via a DIP switch | 5HP width for a single power supply | Can support insulators / fins for 270VDC operation in high altitude / harsh environments (custom assembly)
• Backplane is designed for 25 Gbps data rates and supports 100GBASE-KR4
