Multi Rotary Switch-X4 Series Hall Effect with Optional Push-Button

July 21, 2016

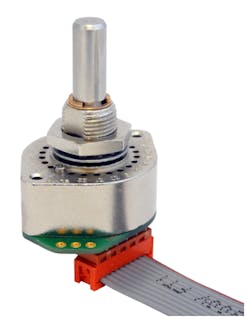

Elma’s new Hall Effect sensor coded switch brings together the legendary feel and click of Elma’s type 04 switch with the latest Hall Effect sensing technology to create a coded switch or encoder with 1-wire interface.12, 24 or 47/48 positions, with selectable end stop1.5 to 20 Ncm switching torqueUp to 1 Mio switching cyclesAbsolute code with analog and PWM outputs, or encoder outputSelectable parallel or 1-wire interface (UART)Optional push button switch2.7 to 5.5 VDC operating voltage-30 to +85°C operation, with optional IP68 sealingMIL -ST D-202GMIL -ST D-810FRoHS (2002/95/EC )
