Resolver-to-Digital Converter

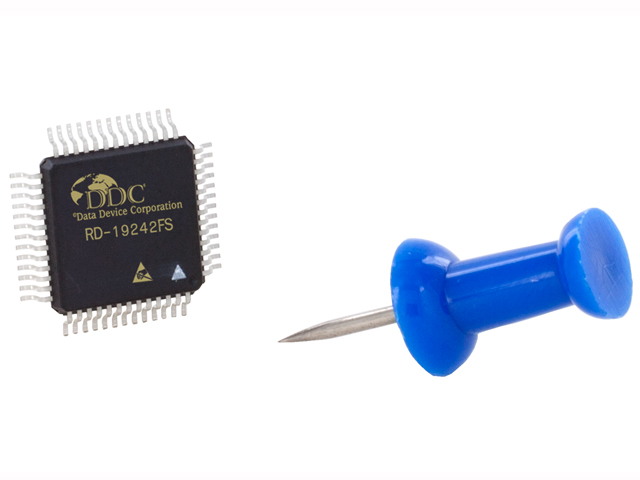

Compact and reliable, DDC's RD-19242 resolver-to-digital converter offers a low cost off-the-shelf solution for today's rugged, high reliability motion feedback applications. These cost-effective converters offer programmability and flexibilty, with a small footprint and a temperature range able to support a wide array of applications.BENEFITSAnalog Component Eliminates Need for DO-178 Re-certificationSerial Output (SPI) Utilizes Less I/O from ProcessorIntegrated Reference Oscillator Reduces Costs and External Component CountFlexible Resolution, Bandwidth, and Tracking for Your Application NeedsEncoder Emulation Enables Replacement of an Encoder with a Rugged ResolverSynthesized Reference Corrects Up to 45 Degrees of Phase ShiftReduces Risk and Effort Required by In-House ResourcesStandard Off-the-Shelf Solution Enables Faster Time to MarketDevelopment Kit for RD-19232 & RD-19242 R/D ConvertersAPPLICATIONSHybrid Electric VehiclesAutomotive Position SenseFactory AutomationAviation Flight Control SurfacesIndustrial Motor ControlRobotics
