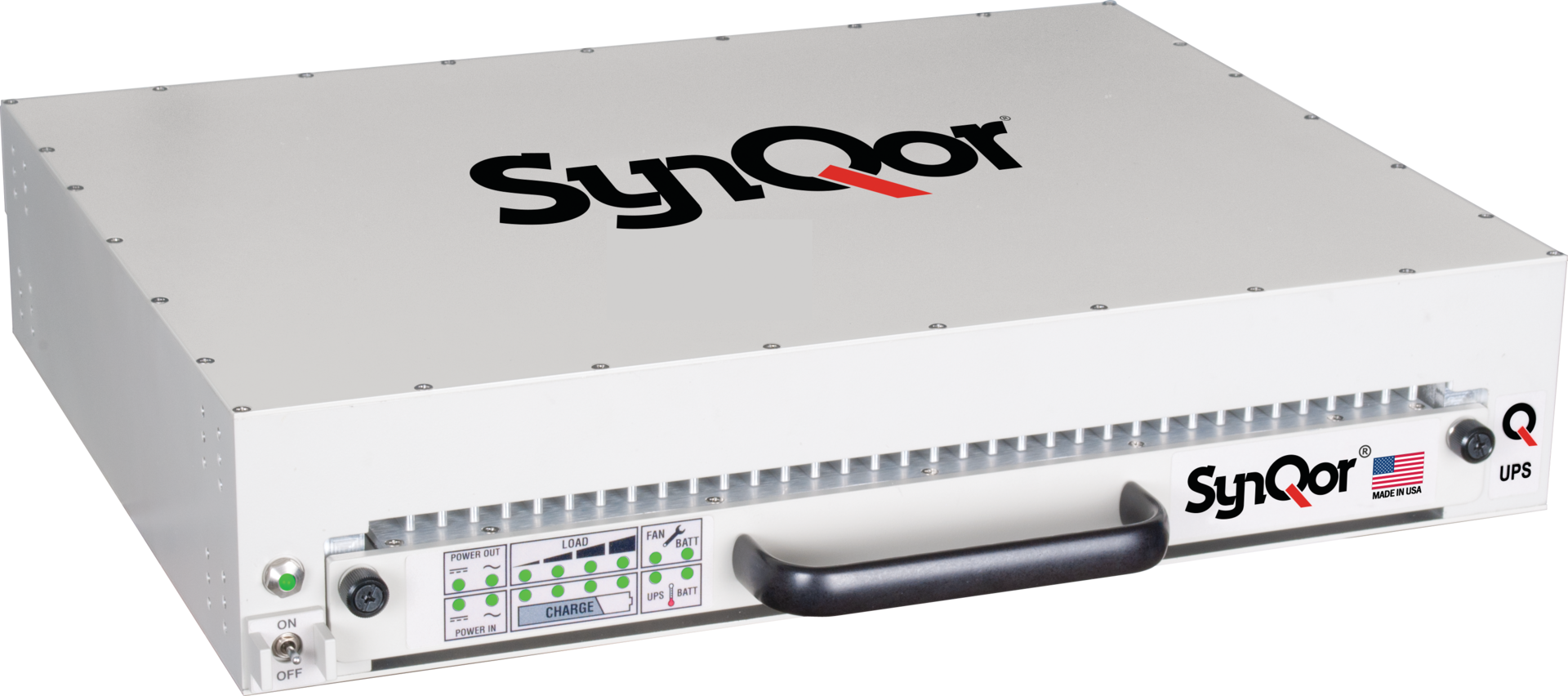

SynQor’s Military-Grade Uninterruptible Power Supply units are designed for the extreme environmental and demanding electrical conditions of Military/Aerospace applications. SynQor’s UPS incorporates field proven high efficiency designs and rugged packaging technologies. This UPS will accept a wide range of input voltage and frequency values while delivering a well-conditioned AC output to the load. Up to three units can be combined to provide higher power, higher voltage and/or multiple output phases. The use of lithium polymer batteries permits the lowest profile and lowest weight solution in its power class. It is designed and manufactured in SynQor’s USA facilities to comply with a wide range of military standards. Options include a 500 W or single 1250 W DC output, a DC input rated for military 28 VDC sources, and an electronic breaker on the AC output provides fault-tolerant parallel operation for higher power and/or N+M redundancy.
SPECIFICATION COMPLIANCE FEATURES
UPS-1500 units are designed to meet:• MIL-STD-1399-300B - Interface Std for Shipboard Systems• MIL-STD-810G - Environmental Engineering Considerations• MIL-STD-461F - Electromagnetic Interference• MIL-STD-704F - Aircraft Electrical Power Characteristics• MIL-STD-1275D - Vehicle Electrical Power Characteristics
FEATURES
• Sealed, weather-proof, shock-proof construction• Hot swappable internal battery pack (lithium polymer)• >10 minute run-time at full power• 1250W (1500VA) output power• Full power operation: -20°C to +55°C• 3 Phase AC input: 85 - 140Vrms L-N (147-242Vrms L-L)• Wide range AC input frequency: 45-800Hz• Power factor correction at AC input• Dual input (AC and optional DC)• True on-line double conversion• Cold start with no AC or DC input connections• Pure sinusoidal AC output voltage (115VAC, 60Hz)• Handles 0.0—1.0 power factor loads and non-linear loads• Up to 3 units can be combined for higher power, voltage or a 3-Phase AC output• Up to 32 units can be combined to form a higher power fault-tolerant, glitch-free system, perhaps with N+M redundancy, by ordering with the "AC Output Electronic Breaker" option and the appropriate configuration cable• User I/O and Configuration signal ports• 1U high rack mount unit (17.00”W x 22.53”D x 1.73"H)
MANUFACTURING PROCESS
• AS9100 and ISO 9001 certified facility• Full component traceability
OPTIONS
• DC input (28 Vnom) for dual source• 2U Extended battery pack gives >24 minutes of run-time• Wide-range AC input frequency: 47 Hz to 800 Hz• 115 Vrms or 230 Vrms AC output• 50 Hz, 60 Hz, or 400 Hz output• DC1: Auxiliary isolated DC output (up to 500 W)• DC2: High power DC output (up to 1250 W) parallelable for higher power• Shipboard version with floating neutral wire
