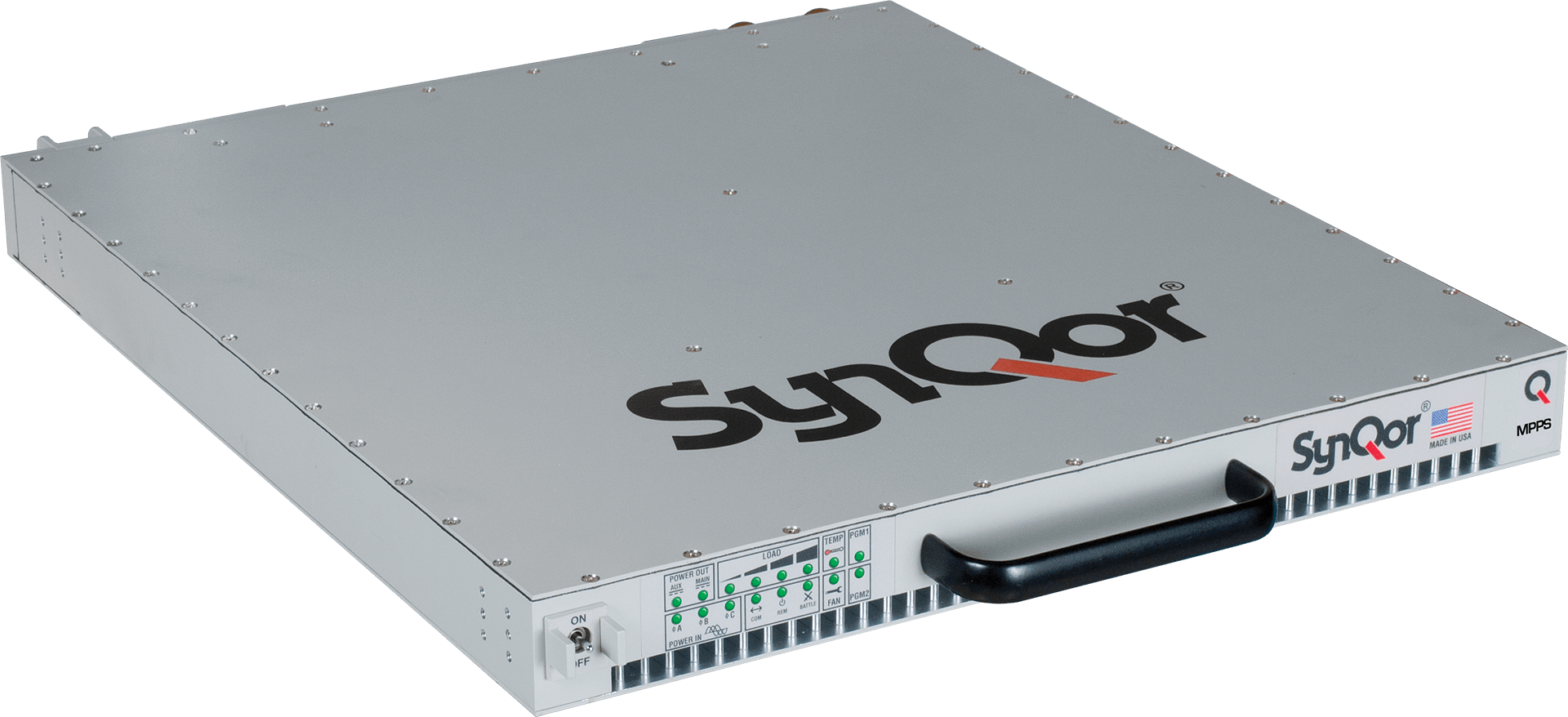

SynQor’s Military Field-Grade Programmable Power Supply units are designed for the extreme environmental and demanding electrical conditions of Military/Aerospace applications. SynQor’s MPPS-4000-270 incorporates field proven high efficiency designs and rugged packaging technologies. This MPPS will accept a 3-Phase AC input and change it to a tightly regulated high voltage DC output using a two-stage DC link isolated topology.  The output is programmable by the user from 25-400 V.  Full output power is available from 175-400 V.  The output current limit is also programmable by the user for battery charging applications. The MPPS-4000-270 is designed  to comply with a wide range of military standards. Parallel up to 32 units for increased power, and/or N+M redundancy.

Features Specification Compliance

• Sealed, weather-proof, shock-proof construction

• Two-stage, DC link isolated topology

• MIL-STD-1399-300B - Interface Std for Shipboard Systems

• Programmable output voltage 25 - 400 V

• Full Power available from 175 - 400 V

• Programmable current limit 0.2 - 24 A

• Tightly regulated, low noise DC output

• 4000 W  continuous output power; 15 s transient to 4500 W

• Appropriate for pulsed loads, high capacitance loads, battery charging

• Full power operation: -40 °C to +55 °C

• 3-Phase 360-528 Vrms L-L Δ input (draws balanced currents)

• 47-65 Hz input frequency range

• Up to 32 units can be combined for higher power , and/or N+M redundancy

• User I/O and Configuration signal ports

• Battle Mode for over-temperature events

• 1U high rack mount unit (17.00”W x 22.42”D x 1.73”H)

Specification Compliance

MPPS-270 units are designed to meet:

• MIL-STD-810G - Environmental Engineering Considerations

• MIL-STD-461F - Electromagnetic Interface

In-Line Manufacturing Process

• AS9100 and ISO 9001 certified facility

• Full component traceability
