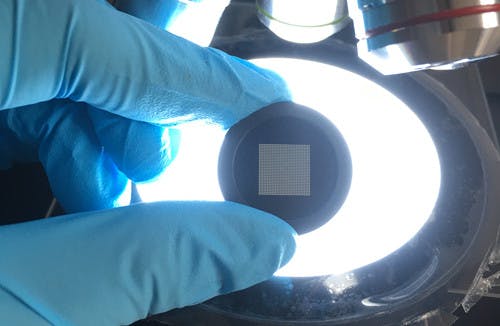

Precision Pinholes/Pinhole Array

March 12, 2024

Material: Stainless Steel, aluminum,glass and copper etc.
Thickness (mm): standard 0.05mm, 0.1mm. Can be customized
Outer Shape Diameter (mm): 9.5mm or customized
Pinhole diameter: 5um,10um,25um,50um,75um,100um,200um,500um,1000um or at customer’ request
Type: Unmounted, mounted pinholes are also available.
Finish: Can be blacked or not
Apart from standard pinholes and apertures, we can also customize pinhole arrays and also the outer shape. It can be made as round, rectangular, hexagon etc only if you have drawings. Meanwhile, high power pinhole with gold coating, pinhole arrays, precision slits and chrome-coated glass slits(optical slits) can also be customized.If not listed, please contact us for more customized information.
We accept not only small quantity but also mass production with competitive price.
