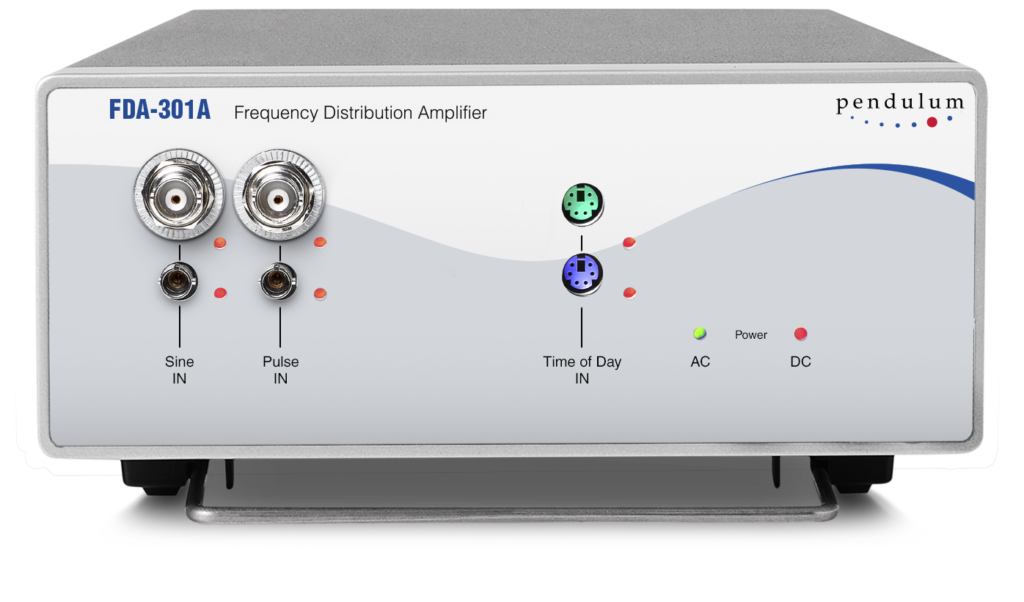

The FDA-301A Time & Frequency Distribution Amplifier is a very versatile fiber and coax Distribution Amplifier designed to distribute various signal types from a central frequency standard, and/or a central timing source, to multiple remote receiving points.
The unit features a modular output design, with three output module slots at the rear, supporting up to 18 fiber or 12 coax connections from a single unit. It offers narrowband sine reference frequency distribution with minimal jitter for reference signals between 100 kHz and 60 MHz.
The unit is designed to work with any Pendulum Frequency Standard (GPS-12R, 6688/89, GPS-88/89), any Fluke Frequency standard (908/909, 910, 910R) and with any reference clock from Orolia/Spectracom. It will also work with all other brands that produce a sine wave reference with amplitude between 0.2 and 2 Vrms.
