Phoenix Mars mission uses Actel RTAX-S FPGAs

Radiation-tolerant RTAX-S field-programmable gate arrays (FPGAs) from Actel in Mountain View, Calif., are aboard NASA’s Phoenix mission to Mars, which launched this summer from Cape Canaveral Air Force Station in Florida.

Th 0710mae News01

By John McHale

CAPE CANAVERAL, Fla. - Radiation-tolerant RTAX-S field-programmable gate arrays (FPGAs) from Actel in Mountain View, Calif., are aboard NASA’s Phoenix mission to Mars, which launched this summer from Cape Canaveral Air Force Station in Florida.

The Phoenix spacecraft includes a Meteorological Station (MET), provided by the Canadian Space Agency. MDA, a provider of robotic space systems, led construction of the MET instrument and has integrated Actel’s one-million gate RTAX1000S-CQ352 device into the instrument subsystem, which is used to acquire, process, and transmit temperature and pressure data to scientists and researchers back on Earth.

“We have a stringent review and evaluation process for our suppliers,” says Andrew Kerr, program manager for the MET program at MDA. “Following this review, we determined that the RTAX1000S-CQ352 provided the high reliability and stringent low-power metrics required for this mission-essential function. Using the high-density RTAX-S Actel device, MDA’s MET instrument temperature and pressure subsystem is designed to provide accurate data throughout the mission, without failures.”

“MDA needed a no-risk, low-power solution to develop its multi-million-dollar system for space flight,” says Rich Brossart, vice president of product marketing at Actel. “Actel’s antifuse-based technology combines radiation tolerance with the industry’s lowest power, enabling it to withstand the rigorous environments of space flight and exploration.”


Phoenix is the first mission of NASA’s Mars Scout Program, scheduled to arrive at Mars on May 25, 2008.
Click here to enlarge image

The Actel radiation-tolerant RTAX-S FPGA family consists of devices ranging in density from 250,000 to 4-million equivalent system gates. The family, which includes the RTAX1000S used in the Phoenix mission’s flight, offers unique features desirable for space-flight applications, including single-event upset (SEU)-hardened flip-flops, usable error-corrected on-board memory, and a large amount of user I/O.

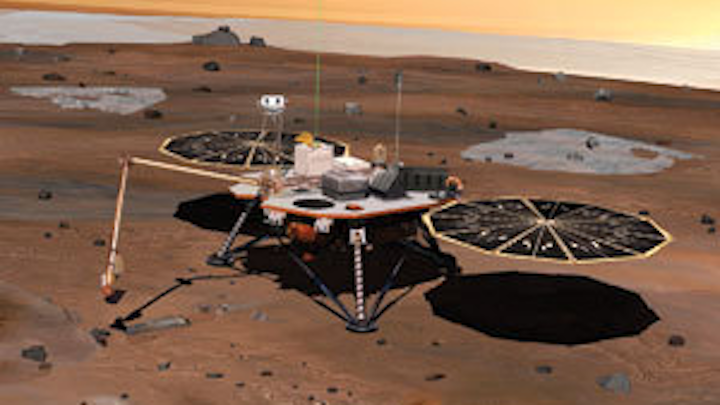

Phoenix is the first mission of NASA’s Mars Scout Program. Scheduled to arrive at Mars in May 2008, the spacecraft will land on the icy northern latitudes of Mars. During its 90-day primary mission, Phoenix will dig trenches with its robotic arm into the frozen layers of water below the surface.

The Phoenix mission will study the history of water and habitability potential in the Martian arctic’s ice-rich soil. The Phoenix spacecraft includes the MET built by MDA, which will record the daily weather of the Martian northern plains using temperature and pressure sensors.

Once the Phoenix arrives on Mars, the MET instruments will be used constantly in surface operations, which are expected to last 150 days. These instruments are central to scientific exploration on Mars, providing the essential tools scientists need to learn more about the Martian climate and geology, as well as determine whether life has ever existed. The MET instrument will contribute to the success of the Phoenix mission.

The MET instruments operate on a combination of battery power and solar energy. Because sunlight in the Martian polar region is even weaker than at its equator, all systems and their components must feature extremely efficient power management.

For more information on Actel, visit www.actel.com.
