30-Watt DC-DC converters for test and measurement and process control introduced by TDK Lambda

SAN DIEGO, 16 July 2015. Power electronics specialist TDK Lambda Americas Inc. in San Diego is introducing the TDK-Lambda 30-Watt CCG30G series of DC-DC converters for test and measurement, battery-powered, broadcast, process control, data communications, and telecommunications equipment.

Jul 16th, 2015
By Mil & Aero staff
By Mil & Aero staff

SAN DIEGO, 16 July 2015.Power electronics specialist TDK Lambda Americas Inc. in San Diego is introducing the TDK-Lambda 30-Watt CCG30G series of DC-DC converters for test and measurement, battery-powered, broadcast, process control, data communications, and telecommunications equipment.

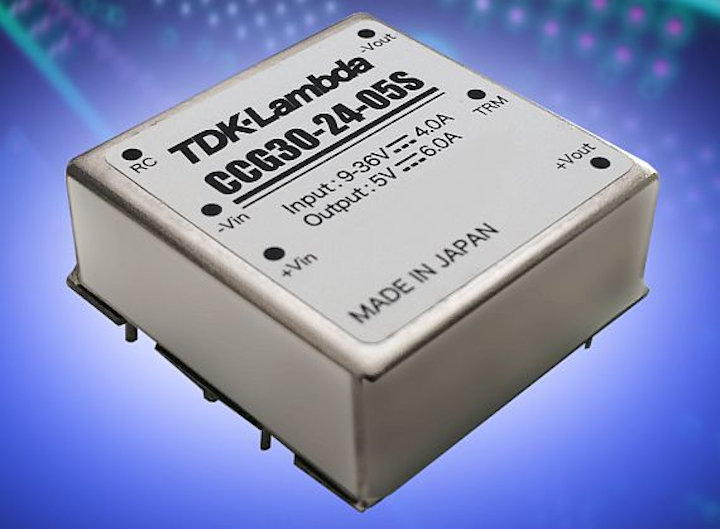

Operating over a 4:1 input range, these efficient products are enclosed in a 1 inch by 1 inch six-sided shielded metal case. The CCG30S is available with 3.3-, 5-, 12-, or 15-volt outputs and can operate from either a 9 to 36 volts DC or 18 to 76 volts DC input.

The wide range enables inventory reduction programs as the converters can operate from either 12- and 24-volt or 24- and 48-volt nominal inputs without the need to stock two parts.

With operating efficiencies to 91 percent, the CCG30S series will operate in ambient temperatures from -40 to 85 degrees Celsius. All models are backed by a five-year warranty and have a +/-10 percent output trim function, remote on/off, and over voltage and over current protection.

Related: High-reliability 12- and 15-volt power supplies introduced by TDK-Lambda

The isolated CCG series has an input to output isolation of 1,500 and 1,000 volts DC input or output to case. Safety certification includes IEC/EN 60950-1, UL/CSA 60950-1 with CE marking for the Low Voltage and RoHS2 Directives.

For more information contact TDK Lambda online at www.us.tdk-lambda.com.
