AVX unveils TCH series of hermetically sealed tantalum polymer chip capacitors for aerospace, other high-reliability applications

GREENVILLE, S.C., 22 June 2013. AVX Corp., a manufacturer of passive components and interconnect solutions, has announced the availability of its new TCH Series hermetically sealed tantalum polymer chip capacitors for aerospace and other high-reliability applications.

Jun 22nd, 2013
Content Dam Mae Online Articles 2013 06 Avv746 Tch Series Capacitors Pr
GREENVILLE, S.C., 22 June 2013. AVX Corp., a manufacturer of passive components and interconnect solutions, has announced the availability of its new TCH Series hermetically sealed tantalum polymer chip capacitors for aerospace and other high-reliability applications.

TCH Series capacitors feature conductive polymer electrodes and exhibit very low ESR and low derating capabilities, as well as high ripple current, high capacitance (1.5-680µF), and among the highest voltages (10-100V) of any space-grade SMD tantalum polymer capacitor currently available on the market.

“The TCH Series was initially developed for a mission-critical European Space Agency application that required both extremely high capacitance and very low ESR, which tantalum polymer technology is particularly well-suited for,” explains Allen Mayar, product marketing manager at AVX. “Having overcome the material’s sensitivity to the combination of high temperature and high humidity by hermetically sealing the capacitor in a ceramic SMD case filled with inert gas, which eliminates humidity and oxidative degeneration, AVX now offers the highest voltage space-grade SMD tantalum polymer capacitors on the market.”

TCH Series capacitors are hermetically sealed in ceramic cases filled with inert gasses to eliminate material and performance degradation resulting from exposure to high temperature, high humidity, and ambient atmosphere. The series exhibits excellent performance stability in aerospace and other high-reliability applications, as well as enable a significant payload reduction for power supplies, says a spokesperson.

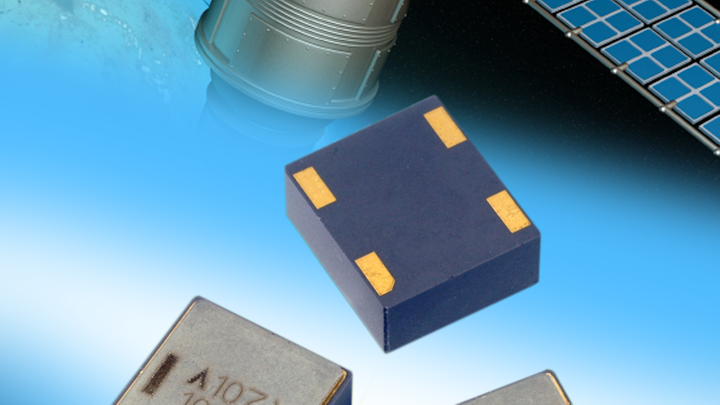

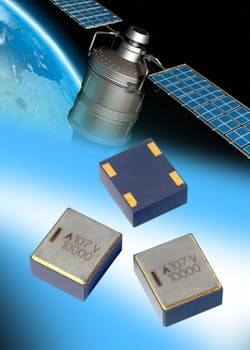

Housed in large CTC-21D cases, AVX’s new TCH Series hermetically sealed tantalum polymer chip capacitors provide high capacitance values, spanning 1.5µF to 680µF, and high rated voltages, spanning 10-100V. Rated for use in temperatures ranging from -55ºC to +125ºC, TCH Series capacitors weigh a mere 2.4g each and are available with either J-lead or standard under-tab terminations. Dimensions for TCH Series capacitors with J-leads are: 11.8mm x 12.5mm x 5.8mm. Dimensions for TCH Series capacitors with under-tab terminations are: 11mm x 12.5mm x 5.45mm.
