Mil-spec RF and microwave directional coupler for electronic warfare introduced by KRYTAR

SUNNYVALE, Calif., 12 March 2015. KRYTAR Inc. in Sunnyvale, Calif., is introducing the model 106026506 mil-spec RF and microwave directional coupler for broadband electronic warfare (EW) systems and complex switch-matrix applications.

By Mil & Aero staff
By Mil & Aero staff

SUNNYVALE, Calif., 12 March 2015. KRYTAR Inc. in Sunnyvale, Calif., is introducing the model 106026506 mil-spec RF and microwave directional coupler for broadband electronic warfare (EW) systems and complex switch-matrix applications.

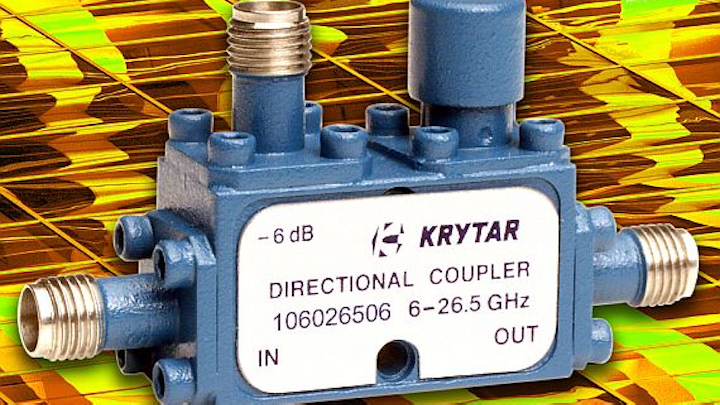

The coupler operates in the frequency range of 6 to 26.5 GHz and offering nominal coupling of 6 dB in a compact package. The device uses a stripline design for low insertion loss, high directivity, and tight coupling.

This coupler delivers 6 dB (plus-or-minus 0.5 dB) of nominal coupling (with respect to output) and frequency sensitivity of plus-or-minus 0.5 dB. Directivity is less than 14 dB. The coupler exhibits insertion loss of less than 1.6 dB across the frequency range including coupled power.

Related: Compact power divider for broadband electronic warfare (EW) introduced by KRYTAR

Maximum VSWR at any port is 1.45, input power rating is 20 Watts average and 3 kilowatts peak. Operating temperature is -54 to 85 degrees Celsius. It measures 1.12 by 0.53 by 0.64 inches, and offers a standard 3.5-millimeter SMA female or optional SMA male connector.

For more information contact KRYTAR online at http://krytar.com.
