Power measurement sensor for radar and automotive uses introduced by Rohde & Schwarz

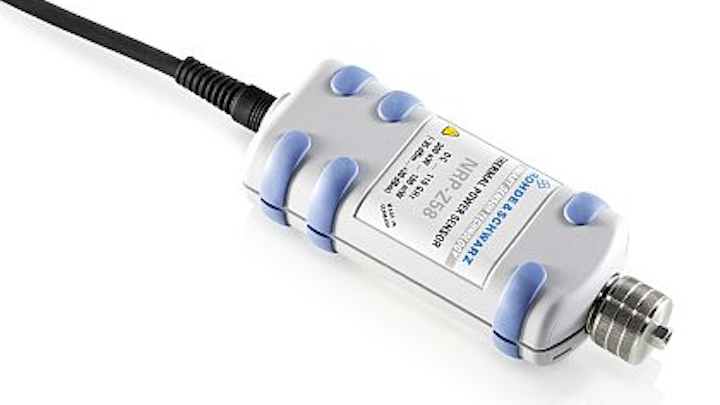

MUNICH, March 15, 2013. Test and measurement specialist Rohde & Schwarz in Munich is introducing the R&S NRP-Z58 power sensor for military and industrial radar systems operating at 94 GHz, or for automotive applications at 77 GHz, such as automatic cruise control and collision warnings.

Power measurement sensor for radar and automotive uses introduced by Rohde & Schwarz
Power measurement sensor for radar and automotive uses introduced by Rohde & Schwarz

MUNICH, March 15, 2013. Test and measurement specialist Rohde & Schwarz in Munich is introducing the R&S NRP-Z58 power sensor for military and industrial radar systems operating at 94 GHz, or for automotive applications at 77 GHz, such as automatic cruise control and collision warnings.

The test & measurement sensor's measuring speed is more than 300 measurements per second in buffered mode, and its range is 55 dB (-35 dBm to 20 dBm). When performing relative measurements such as amplification and reflection measurements, the R&S NRP-Z58 delivers precise measurement results thanks to its linearity of 0.01 dB.

The ball bearing 1.00-millimeter coaxial plug can be screwed onto the jack of the measuring instrument to provide measurement reproducibility.

The R&S NRP-Z58 can connect to a PC via a USB interface to analyze measurement results. It also can function together with the R&S NRP2 base unit.

In addition, the power sensor helps users working in development, production and maintenance to determine the average power of continuous-wave (CW) signals, pulsed signals, or complex digitally modulated signals.

For more information contact Rohde & Schwarz online at www.corporate.rohde-schwarz.com.
