AC power source, frequency converter, and inverter for military uses introduced by Behlman

HAUPPAUGE, N.Y., 16 May 2014. Behlman Electronics Inc. in Hauppauge, N.Y., is introducing the model PF1352 AC power source, frequency converter, and inverter for military, industrial, and commercial applications.

AC power source, frequency converter, and inverter for military uses introduced by Behlman
AC power source, frequency converter, and inverter for military uses introduced by Behlman
HAUPPAUGE, N.Y., 16 May 2014. Behlman Electronics Inc. in Hauppauge, N.Y., is introducing the model PF1352 AC power source, frequency converter, and inverter for military, industrial, and commercial applications.

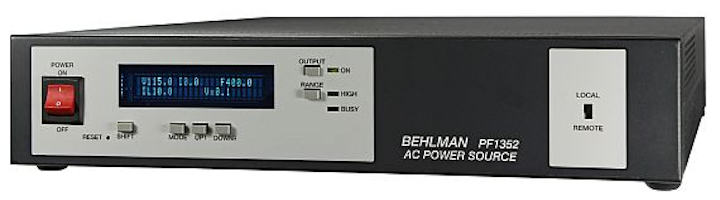

The PF1352 delivers 1350 volt-amperes (VA) of clean, regulated AC power from a 3.5-inch high bench-top unit that converts to rack mount.

The PF1352 is microprocessor-controlled, and provides adjustable voltage and frequency, low output total harmonic distortion, and high efficiency, plus line and load regulation.

Its overload protection system folds back voltage to maintain rated current without distorting waveform output. It has settings and measurements for voltage, frequency, current, current limit, Watts and power factor, plus fault indicators for over voltage, over current, over temperature, constant current and overload latch.

This unit can be controlled via front-panel push buttons, or remotely via its RS232 interface. Options include an IEEE-48 interface, extended frequency range of 45 to 1000 Hz, and an adapter for USB to serial port.

The unit measures 3.5 by 17 by 22 inches to fit on workbenches. An optional rack mount kit also is available. For more information contact Behlman Electronics online at www.behlman.com.
