Power test analyzers for single-phase and DC powered equipment introduced by Adaptive Power Systems

July 30, 2019
The M1001 power analyzers offer 18 current measurement ranges and six voltage ranges for voltage, current, and power resolution measurements.

IRVINE, Calif. – Adaptive Power Systems Inc. (APS) in Irvine, Calif., is introducing a single-channel digital power analyzer for AC and DC power measurements.

These power analyzers are for product development and test for single-phase powered consumer and industrial products as well as DC powered equipment and devices.

The M1001 series of power analyzers offers 18 current measurement ranges and six voltage ranges for resolution and accuracy of voltage, current, and power measurements. Maximum voltage measurement range is ±800 volts peak.

In addition to basic power measurement functions like Watts, VA, VAR, Vthd, Ithd, and harmonics of voltage and current, the M1001 power analyzer offer special measurement modes for performance measurements such as ENERGY STAR / EN62301 Standby Power measurements or EUT Inrush Current measurements.

For Inrush current measurements of an EUT at different AC voltage start phase angles, the M1001 features a built in phase programmable, electronic EUT power switch that allows for programmable start phase angle to determine worst case inrush current.

Related: Navy chooses vector network analyzers from Rohde & Schwarz to test RF and microwave and power components

Other unique measurement modes include power consumption accumulator measurement modes to determine EUT power consumption over a preset period of time.

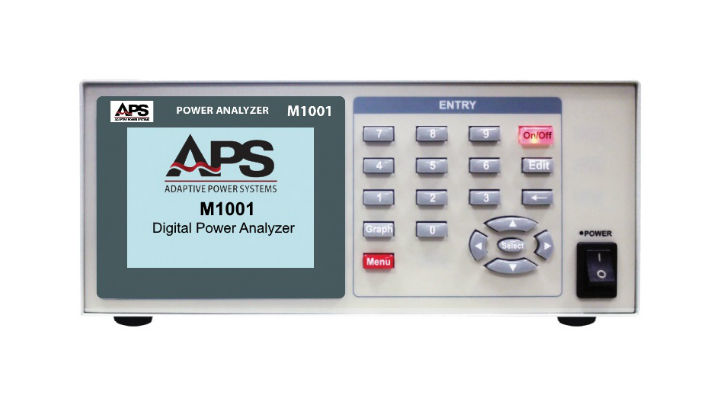

All functions and measurement results of the M1001 power analyzers are controlled by its color display and front panel keyboard.

Operation is straightforward using cursor keys and a 10-digit keypad to navigate through menus and enter parameters. The large color display allows for a range of data display modes including scope like displays and both bar chart and table harmonics displays.

For more information contact Adaptive Power Systems online at https://adaptivepower.com.
