High-voltage wire harness and backplane analyzer

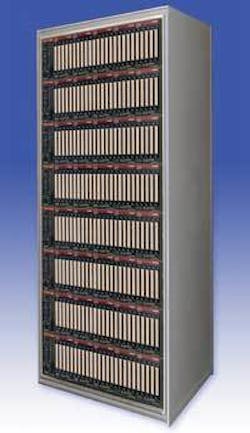

Cirris Systems Corp. in Salt Lake City is offering the easy-wire CH2 high-voltage wiring harness and backplane tester. The CH2 offers test voltages to 1500 volts DC and 1000 volts AC in a modular system available with 160 to 20,000 test points. The CH2 will be an easy adoption for existing Cirris customers who are using the easy-wire CR or CH+ testers, since it too will run on this popular, easy-to-use software platform, company officials say. The CH2 can self-learn the wiring pattern from a sample assembly, can be programmed through its onboard wirelist editor, or test programs can be imported from CAD/CAE generated data files. In addition to testing, the CH2 can be used as a zero-defect wiring assembly aid. It can guide the operator step-by-step through the assembly process with on-screen connector graphics and red/green LED indicators. For more information contact Cirris Systems online at www.cirris.com.
