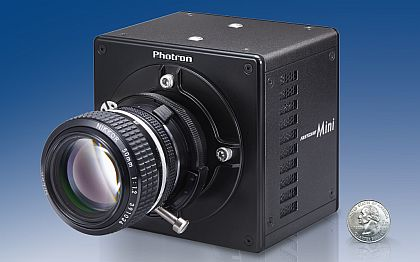

The one-piece high speed imager provides 1,280-by-1,024 pixel resolution to 4,000 frames per second (fps), 1,280-by-720-pixel high-definition (HD) resolution to 6,400 fps, and reduced-resolution operation to 800,000 frames per second.
The global electronic shutter operates down to 1 microsecond to provide blur free, black-and-white imagery with 12-bit pixel depth, or 36-bit pixel depth for the color images.
Light sensitivity is ISO 12232 Ssat certified at 8,000 ISO 12-bit monochrome; 4,000 ISO for the 36-bit color version. The camera comes in 120-millimeter-by-120-millimeter-by-90-millimeter package that weighs 3.3 pounds.
The camera comes with three onboard memory options to 16 gigabytes, as well as with the FASTCAM Mini UX1000 CMOS sensor that has 10-micron square pixels. The camera includes a Gigabit Ethernet interface, to 64 available memory partitions, F-mount (G-type lens compatible) and C-mount lens mounts, and a trigger mode that offers start, center, end, manual, and random control.
For more information contact Photron online at www.photron.com.
