Sikorsky to acquire and integrate data storage and electronic warfare systems to upgrade CH-53K helicopter

July 3, 2019
Navy asks for new data transfer unit and defensive electronic countermeasure system for production CH-53K heavy-lift helicopter for the Marine Corps.

PATUXENT RIVER NAS, Md. – Helicopter avionics experts at Sikorsky Aircraft Corp. will acquire data storage and electronic warfare (EW) systems for upgrades to the U.S. Marine Corps CH-53K heavy-lift helicopter under terms of a $21.7 million order announced Tuesday.

Officials of the Naval Air Systems Command at Patuxent River Naval Air Station, Md., are asking Sikorsky Aircraft, a Lockheed Martin company in Stratford, Conn., to procure the CH-53K data transfer unit and defensive electronic countermeasure system.

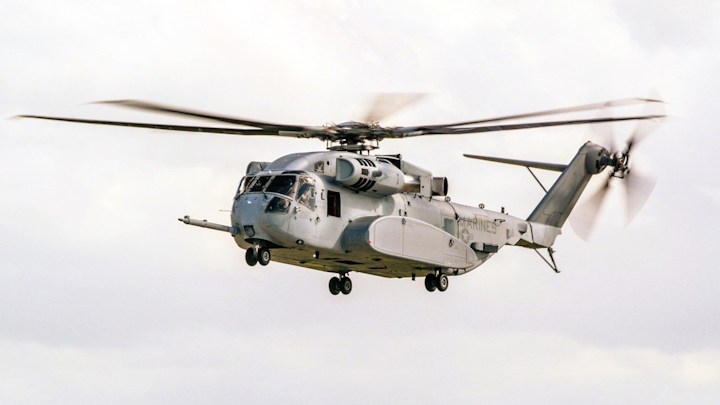

These systems are for avionics upgrades to CH-53K production aircraft. The CH-53K King Stallion is a large cargo helicopter designed to replace the Marine Corps fleet of CH-53E heavy-lift helicopters to help move Marines and their equipment from ships offshore onto attack beaches. The CH-53K is a general redesign of the CH-53E.

Last month the Navy awarded a $1.13 billion order to Sikorsky to build 12 new CH-53K helicopters and integrated avionics for the Marine Corps. These helicopters are part of 200 planned for the Marines.

Related: Rugged SATA data storage card for aircraft and military ground vehicles introduced by Kaman

The CH-53K will receive the DTU-7100 data transfer unit from Collins Aerospace in Cedar Rapids, Iowa. The new unit transfers files to and from the helicopter, and enables flight and ground crew to record and play back the video and audio using industry-standard MPEG-2.

In addition, the unit has the computing power and speed to serve digital moving map data directly from its compact flash memory cards, which eliminates the need for storage elsewhere in the system, Collins Aerospace officials say.

The DTU-7100 data transfer unit is designed for harsh environments; measures 2.25 inches high by 6.9 inches deep; supports analog audio and video I/O; has four compact flash slots; a USB 2.0 port for file transfer; two 10/100/1000 Base T Ethernet ports; two 10/100 Base T Ethernet ports; one selectable RS-422 or RS-232 serial port; compact flash purge; power-up/initiated/continuous built in test; and no cooling required.

The CH-53K's defensive electronic countermeasure system is from the Northrop Grumman Corp. Mission Systems segment in Rolling Meadows, Ill.

Related: Rugged data storage for aircraft UAVs, and mobile radar introduced by Curtiss-Wright

The EW system integrates the AN/AAQ-24 Large Aircraft Infrared Countermeasures Systems Processor Replacement with the Advanced Threat Warning Missile Warning Sensors; the AN/APR-39D(V)2 Radar Warning Receiver System; replaces the AN/ALE-47(V) Countermeasures Dispensing System with the Power PC Processor Upgrade and the Avionics Management System.

The order to Sikorsky includes non-recurring engineering to replace existing subsystems within the CH-53K production aircraft. NRE tasks include investigation, systems engineering support, risk analysis, integration development, weight impact, and publication updates.

On this order Sikorsky will do the work in Stratford, Conn.; Cedar Rapids, Iowa; Fort Worth, Texas; Vergennes, Vt.; City of Industry and Costa Mesa, Calif.; and other U.S. locations, and should be finished by January 2021.

For more information contact Sikorsky Aircraft online at www.lockheedmartin.com/en-us/capabilities/sikorsky.html, or Naval Air Systems Command at www.navair.navy.mil.
