Embedded computing mezzanine with Zynq UltraScale+ multiprocessor system-on-chip (MPSoC) offered by Acromag

Jan. 15, 2021

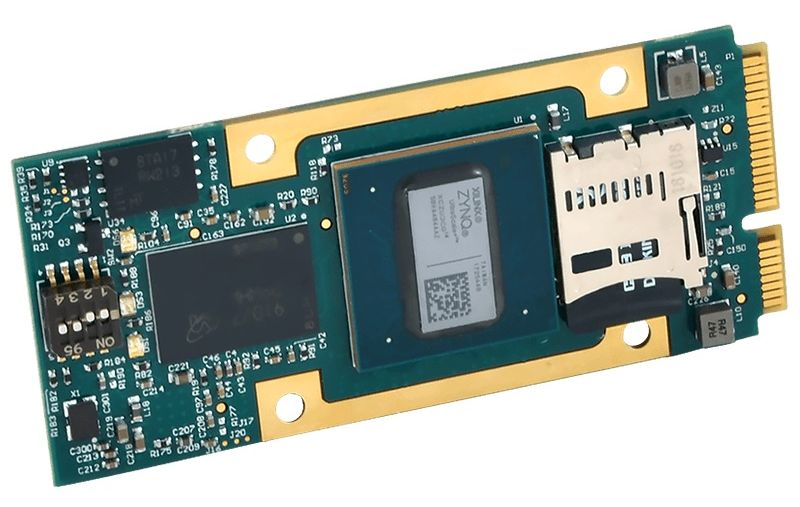

APZU series mini PCI Express-based AcroPack module with programmable I/O features the Xilinx Zynq UltraScale+ multiprocessor system-on-chip (MPSoC).

WIXOM, Mich. – Acromag in Wixom, Mich., is introducing the APZU series AcroPack mezzanine module that combines multi-core ARM processors, FPGA capabilities, and I/O interfaces on a rugged, high-density platform for embedded computing applications.

Acromag's APZU series expands their offering of mini PCI Express-based AcroPack modules with a programmable I/O solution featuring the Xilinx Zynq UltraScale+ multiprocessor system-on-chip (MPSoC).

The APZU series uses the Xilinx Zynq UltraScale+ multiprocessor system on chip (MPSoC) for I/O processing and programmable logic.

Three models are available offering a choice of digital I/O interfaces: 28 TTL; 20 TTL and 3 RS422/485; and 14 LVDS signals.

Related: FPGA-enabled trusted boot is part of building security into every aspect of trusted computing architectures

These mezzanine modules mount on a variety of AcroPack carrier cards for PCI Express, VPX, and other platforms that enable developers to mix and match I/O combinations on one board for embedded applications running on Linux, Windows, or VxWorks operating systems.

The APZU's Zynq 3CG MPSoC combines a feature-rich ARM-based processing system and programmable logic in one device. Two dual-core ARM Cortex CPUs (A53 application processor and R5 real-time processor) deliver high-performance computation capability.

For more information contact Acromag online at www.acromag.com.
