Aitech introduces C108 rugged 6U VME single-board computer for new and legacy applications

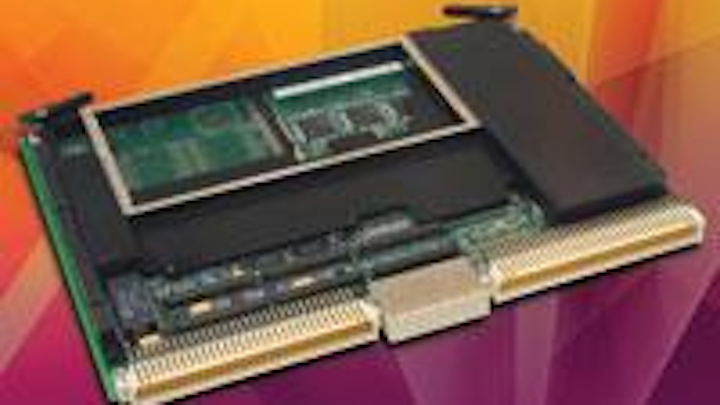

Aitech Defense Systems Inc. in Chatsworth, Calif., is releasing the high-performance C108 rugged 6U single-slot VME single-board computer (SBC) for use in new and legacy military embedded applications.

Jan 1st, 2008
Th 0801mae Newproducts05
Click here to enlarge image

Aitech Defense Systems Inc. in Chatsworth, Calif., is releasing the high-performance C108 rugged 6U single-slot VME single-board computer (SBC) for use in new and legacy military embedded applications. For new applications, the board offers as much as 1.4 GHz of processing power via the G4+ PowerPC (PPC) MPC7448 microprocessor. For legacy applications, the board features pin-to-pin backplane and I/O compatibility with previous Aitech processor boards employing the PPC MPC74xx processor family. The C108 provides numerous I/O capabilities for military embedded applications such as mission management computers, heads-up display controllers, radar and sonar processors, and advanced IED (Improvised Explosive Device) autonomous vehicle protection subsystems, Aitech officials say. The C108 offers I/O interfaces such as a Gigabit Ethernet port, two Fast Ethernet ports, two dual-redundant MIL-STD-1533B interfaces, two USB ports, eight serial ports, and 16 discrete I/O channels. For new programs, Aitech has added an onboard, optically-isolated CAN Bus 2.0B to interface with modern vehicle electronics and major functional subsystems without sacrificing one of the on-board PMC sites as well as to reduce modern subsystems costs. For more information, visit Aitech online at www.rugged.com.
