Universal avionics digital interface
Officials of BMC Communications Corp. in Westbury, N.Y., are offering their Universal Avionics Digital Interface (UADI), a plug-and-run device that enables engineers to program firmware in the field through a computer.
The UADI supports communications protocols MIL-STD-1553 dual-redundant interface, ARINC 708/453, ARINC two-wire/six-wire protocols such as 429/575/571/572/581/582/615/, and RS-232/422.
The avionics refurbishing business is growing, yet one of the compatibility requirements for new avionics equipment calls for meeting either STANAG 3838 or MIL-STD-1553 standard. Many companies need to keep old equipment and be able to integrate that equipment into new systems that use these protocols.
The UADI includes eight analog inputs with 12-bit resolution and 16 general I/O with upgradeable capabilities, and operates from a 5-20 volt power supply. The 7-by-9-by 1 1/4-inch rugged enclosure is compatible with the temperature, humidity, and vibration standards of MIL-STD-810E and EMI MIL-STD-416, and meets all test requirements for helicopters.
For more information, contact BMC online at www.bmccorp.com.
VME card for motor drive power control
Officials of North Atlantic Industries (NAI) in Bohemia, N.Y., are offering a conduction-cooled, dual, four-quadrant, bidirectional VME card to control power to DC motors, called the 64PW3.
The card has two PWM motor drives, each of which accepts 65 volts of DC power input and provides a 5-amp maximum, continuous current output to a DC motor. The 64PW3 offers continuous background self-testing, as well as optional RS-422, A-D, D-A, or dual R-D interfaces.
The 64PW3 motor drives can operate for either current control or voltage control via the VME bus. The card controls motors with the optional RS-422 serial data link. Both output drives shut down via a discrete opto-isolated logic input to the card. The 64PW3 operates over temperatures ranging from -40 to 85 degrees Celsius, and has 800-hertz open-loop bandwidth, short-circuit protected outputs, and watchdog timer.
For more information, contact NAI online at www.naii.com.
VME64 bus-to-bus adapters
Officials of SBS Technologies in Albuquerque, N.M., are offering a family of VME64 bus-to-bus adapters, the SBS 8x0 series, which connect two buses: one VME64 with another VME64, or a VME64 with a PCI, PMC, or CompactPCI bus.
These adapters, which effectively create one virtual bus, create a PCI mezzanine card (PMC) that can access a remote VME bus. These adapters are for connecting VME systems to a PC, workstation, or CompactPCI system, and can eliminate the need for a single-board computer or enable a VME user to migrate to another technology while preserving the existing VMEbus investment. The adapters allow each system's bus to operate independently and affect bus bandwidth only when one system makes a memory or I/O reference to another.
Another feature involves memory-mapping RAM, which allows systems designers to map any memory location on the VME bus in the address space of the other bus. A processor on one bus can use a programmed I/O to read and write a remote memory location transparently, just as if it were a local bus access with as little as 2 microseconds of latency.
For more information, contact SBS online at www.sbs.com.
Add-on network-management software for the TCP/IP stack
CMX Systems in Jacksonville, Fla., is offering simple network-management protocol (SNMP) add-on software for the CMX-MicroNet TCP/IP stack. The CMX-MicroNet is a small-footprint TCP/IP software stack that provides internetworking-connectivity tools to designers working with eight-bit, 16-bit, and digital signal processors (DSPs).
CMX-MicroNet's SNMP add-on is a memory-efficient, portable software-development kit for embedded-systems developers requiring SNMP V1 or SNMP V2c for their applications running on processors with limited memory resources. CMX-MicroNet's SNMP is suitable for inclusion in internal memory of single-chip processor designs already supported by CMX-MicroNet. Other SNMP agents are for network elements such as routers, resulting in unnecessarily large implementations for assets or appliances.
For more information, contact CMX online at www.cmx.com.
Self-clinching panel fasteners
Officials of PennEngineering Fastening Technologies in Danboro, Pa., are offering their PEM Type PFC4 self-clinching stainless-steel panel fasteners that install "flush" on one side into thin stainless-steel sheets.
This type (400 Series stainless steel) can be installed permanently in stainless sheets as hard as HRB 88 hardness on the Rockwell "B" scale. The 400 Series also meets UL 1950 "service-area access" requirements to allow subsequent access to an assembly. The side of the sheet opposite installation remains flush. These fasteners are for attaching stainless sheets as thin as 0.060 inches and for applications requiring high corrosion resistance. The PEM Type PFC4 fasteners have a captive-screw design to keep hardware to a minimum, promote quick installation, and eliminate risk of loose parts falling out and damaging components. A Phillips recess is standard.
For more information, contact PennEngineering's Michael J. Rossi by phone at 800-237-4736 or online at www.pennfast.com.
High-linearity active upconverting mixers
Linear Technology in Milpitas, Calif., is offering two high-linearity upconverting RF active mixers with integrated RF transformers — the LT5519 and LT5520. These devices have low distortion, low local-oscillator-drive requirement, high port-to-port isolation, and low conversion loss. The LT5519 operates over the 0.7-gigahertz to 1.4-gigahertz range, while the LT5520 covers the 1.3- to 2.3-gigahertz frequency bands without requiring external matching components. An RF output transformer is integrated on-chip to enable single-ended output operation for the LT5519 and LT5520. The RF port is internally 50 ohm, matched over the devices' full operating frequency range, so external frequency-matching is not needed. Contact Linear Technology online at www.linear.com.
Power-distribution connector with hot-swap capability
FCI USA in Etters, Pa., is offering the Pwr Blade power-distribution connectors for power connections to chassis-management modules in advanced telecom-computing-architecture (ATCA) systems. These modules can support as many as 16 board slots in ATCA shelves and are for standards-based, high-availability applications based on the PICMG 3.x specifications.
The rear power connector on the chassis-management module can be a right-angle Pwr Blade header similar to those on Server System Infrastructure (SSI) applications. Pwr Blade receptacles provide options for vertical or coplanar mating of the chassis-management module. The vertical receptacle is the mating connector for a backplane.
Pwr Blade connectors are also available in solder or press-fit board termination. For more information, contact FCI online at www.fciconnect.com/pwrblade.
Ultra-light, rugged notebook computer
Designers at Dolch in Fremont, Calif., are offering their RuggedNote lightweight rugged notebook computer, which is wireless ready, has an Intel Pentium M microprocessor with Centrino mobile technology, 256 megabytes of DDR memory, PCMCIA/Cardbus, dual USB 2.0 ports, and a water- and dust-proof membrane keyboard. The Dolch RuggedNote can operate under rainy and dusty conditions, resists the effects of severe shock and vibration, and will survive drops to hard surfaces.
For more information, contact Dolch online at www.dolch.com/html/RuggedNote.html.
Mil-spec low-profile dual data-bus transformer
Datatronics Romoland Inc. in Romoland, Calif., is offering mil-spec low-profile dual data-bus transformer for high-reliability military and industrial applications.
The low-profile 4256-1003 transformer moves data at rapid speed in rugged environments and has a 0.155-inch-tall surface-mount package. The device has minimum input impedance of 4,000 or 7,200 ohms in temperatures ranging from -55 to 130 degrees Celsius, and supports data-transmission requirements in mission-critical military and industrial applications. The transformer supports MIL-STD 981, Class S applications, as well as MIL-STD-1553 A/B and MAC AIR Specifications A3818, A5232, and A45690.
The model 4256-1003 features a frequency range (no load) of 75 KHz to 1 MHz. Other key specifications include overshoot of 1-V maximum, common mode rejection at 45-dB minimum, and droop at less than 20 percent.
Contact Datatronics online at www.datatronicsromoland.com.
PCI bus data-acquisition board
Ultraview Corp. in Orinda, Calif., is offering a PCI bus data-acquisition board able to acquire two simultaneous channels continuously, each at rates as fast as 800 megasamples per second and storing as much as 4 gigasamples of uninterrupted data on each. The AD8-650x2DMA's record length enables new classes of continuous surveillance, intelligence gathering, and single-shot testing applications.
The board acquires two simultaneous streams of data, while its 64-bit 66-megahertz PCI DMA engine concurrently transfers data from onboard memory to the PCI host at rates faster than 300 megabytes per second. The board is for high-speed, low-jitter defense, intelligence, scientific, industrial, and medical applications.
The AD8-650x2DMA can operate with an internal or external clock having any frequency from 1 to 800 megahertz. Typical applications include wideband surveillance, radar, sonar, microwave-component testing, characterization, and NMR/MRI development.
For more information, contact Ultraview online at www.ultraviewcorp.com.
Fibre Channel-based preconfigured modular data recorders
VMETRO in Houston is offering a family of Fibre Channel–based preconfigured modular data recorders called MDR. Designed for VME-base systems, MDR is for real-time data recording into data-acquisition systems such for surveillance, signals intelligence, and telemetry as well as semiconductor and medical imaging.
MDR uses VMETRO's PowerMIDAS 5000 I/O controller, and is preconfigured to accept either Front Panel Data Port (FPDP) or Serial FPDP data streams. MDR offers 385-megabytes-per-second sustained recording performance, a real-time file system to ensure deterministic operation, as well as disk grouping and intelligent disk management.
For more information, contact VMETRO online at www.vmetro.com.
Military application programming interface with QNX Neutrino support
Condor Engineering in Santa Barbara, Calif., is offering the BusTools/1553-API military-application programming interface with QNX Neutrino real-time operating-system (RTOS) support. QNX Neutrino conforms to the Portable Operating System Interface (POSIX) and Eclipse framework. In addition, the QNX Neutrino RTOS will provide Condor's military embedded-systems customers an option to use one of the industry's most trusted RTOS, a system that carried a proven track record for reliability, scalability, and real-time performance.
For more information, contact Condor online at www.condoreng.com.
Universal scaler with four independent channels
RGB Spectrum in Alameda, Calif., is offering a ruggedized version of its QuadView windowing display systems, the QuadView XLRT, which is for applications that display several images on a monitor or projector in mobile and harsh environments. Ideal users include tactical operations centers, naval and airborne consoles, military vehicles, aerospace, as well as undersea and geological exploration.
QuadView XLRT offers four real-time scalers, with each channel capable of scaling, converting, and/or synchronizing different RGB, DVI, HDTV, and standard video signals. When using DVI inputs and outputs, the Quadra provides a completely digital signal path from signal source to display. The Quadra's advanced processing converts analog signals to DVI output for enhanced image quality.
For more information, contact RGB Spectrum online at http://www.rgb.com.
Low-profile DC-DC converter power supply
North Atlantic Industries in Bohemia, N.Y., is offering a 200-watt power supply for VME/cPCI systems and general-purpose applications that is rugged, low-profile, high-power density, conduction-cooled, and quad output. The 55PQ1 accepts a 28-volt DC input per MIL-STD-704D and provides outputs of 3.3-volts DC at 15 amps, 5-volts DC at 15 amps, plus-or-minus 12-volts DC at two amps, plus at 5-volt DC standby output. It provides full output power at 100-degree-Celsius base-plate temperature.
The device has component derating per NAVMAT/NAVSO P-3641, internal EMI filtering per MIL-STD-461E and transient protection per MIL-STD-704D. It is for airborne, shipboard, ground mobile, and C3I applications. It operates in temperatures between -55 and 100 degrees Celsius, and is available in full-military grade or COTS-military grade.
For more information, contact North Atlantic Industries online at www.naii.com.

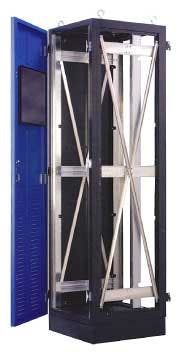

Rugged cabinet enclosures for electronic components
Elma Electric Inc. in Fremont, Calif., is offering a line of heavy-duty Type 45S Seismic Cabinet enclosures to protect equipment during an earthquake. The Type 45S cabinets feature cross bracing, back stiffeners, and double-walled extrusions able to handle heavy weight and the stringent requirements of Zone 4 shock and vibration standards.
The corner sockets and members are welded for reinforcement, meeting ANSI 329 and Bellcore TR-63 specifications. The design incorporates a rugged double-cavity aluminum extrusion with internal solid L-shaped corner keys to provide increased strength and rigidity. The base is also welded for extra durability, featuring thick seven-gauge steel. The rails come in 11-gauge thickness or 10-gauge for extra heavy-duty applications. The hardware used is vibration resistant. The Seismic cabinet line is available in two bezel styles of vertical cabinets for 19-inch and 24-inch systems that let designers combine EMI/RFI shielded and independent, removable side, top, and bottom panels and doors for labor-saving system installation and service.
For more information, contact Elma online at www.elma.com.
Radiation-hardened solid-state memory
Aeroflex Inc. in Colorado Springs, Colo., is offering the UT8CR512K32 16M SRAM ceramic multichip module (MCM) as a new member of the company's RadHard Memory family. The device has four 4M memory die using both sides of the 68-lead ceramic flatpack package to increase bit density and save space and weight. The chip has 15-nanosecond access, 1.8-volt core voltage, and comes in Standard Microcircuit Drawing (SMD)-guaranteed radiation performance. The MCM product is manufactured on a 0.18-micron CMOS process and is available with Total Ionizing Dose (TID) immunity 300 kilorads and comes in a 68-lead flatpack.
For more information, contact Aeroflex online at www.aeroflex.com.
1.25 gigabit-per-second I/O module
TEK Microsystems Inc. in Chelmsford, Mass., is introducing the HOTLink II PCI mezzanine card I/O module, the FPMC-2HL1500, which offers high throughput for sensor-based applications. The module provides peak data rates of 1.25 gigabits per second using either copper or fiber media, at speeds three times as fast as classic HOTLink. It is for data-intense sensor applications such as radar, sonar, semiconductor test, and medical imaging. The FPMC-2HL1500 combines HOTLink II technology with 64-bit 66-MHz PCI. The FPMC-2HL1500 provides two independent full-duplex serial data links that use Cypress HOTLink II transceivers. Because HOTLink is a low-level protocol, it does not consume bandwidth with software overhead resulting in low latency and fast I/O for complex sensor-based applications. Combined with user-programmable FPGA technology, ruggedized options, and standard
VxWorks software support. For more information contact the company online at www.tekmicro.com.
High-speed USB device for JTAG/BDM debugging
Macraigor Systems LLC in Brookline Village, Mass., is offering usbDemon, a high-speed universal serial bus (USB) device for JTAG (IEEE Standard 1149.1) or BDM (background debug mode) that provides embedded systems developers with an interface for target on-chip debug (OCD). The usbDemon applications programming interface is compatible with software debuggers like the GNU tools suite (GCC, GAS, and GDB). The usbDemon operates as a converter of JTAG commands. The Windows host PC communicates with usbDemon via the industry-standard USB protocol to the proper OCD signals required by the target. The host port can be JTAG, E-JTAG, OnCE, COP, BDM, or any of several other types of connections. A dedicated JTAG controller increases throughput performance. For example, binary files can be downloaded to an XScale target at 180 kilobytes per second and the MPC88560 at up to 250 Kbytes per second, company officials say. With higher clock speeds, information is transmitted and received from the target board more efficiently for setting breakpoints, single stepping, tracing, diagnosing problems and other target communications. For more information contact the company online at www.macraigor.com.
Dual solid-state relay for military applications
Teledyne Relays in Hawthorne, Calif., is unveiling its Series LDP70 solid-state relay for military and aviation applications. The device is a dual-output 250-milliamp, 28-volt DC plastic relay with internal protection and with optical isolation for input-to-output isolation. The LPD70 offers a current-limiting output to protect itself and related load circuits from transient current overloads; in overcurrent, the device clamps the current to a safe operating value. Applications for the LPD70 include interface applications, aircraft flight-control systems, automated test equipment, and 28-volt DC aircraft instruments. For more information contact the company online at www.teledynerelays.com.
Software model-conversion tool for simulation and synthesis
Elanix Inc. in Westlake Village, Calif., is releasing SystemView version 6.0 to help designers move system-level models to synthesizable hardware description language (HDL) code, as well as a set of tools to help design and simulate wireless local-area networks. The Netlist Generator helps move SystemView to HDL simulation and synthesis tools. The generated netlist supports design hierarchy, feedback loops, and multiple clock rates. The Wireless Network Library includes low-level functional blocks, high-level packet generation, and parameter-driven modulators and demodulators for IEEE 802.11a/b/g and Bluetooth development. For more information contact Elanix online at www.elanix.com.
SOIC adapter for upgrading from older relays
Aries Electronics in Frenchtown, N.J., is offering small-outline integrated-circuit (SOIC) adapters that provide an upgrade from older Aromat HB2E relays to surface-mount TXSS relays while keeping the same printed-circuit-board layout. Available on 7.62-milillimeter dual inline package centers, the new adapter can mount on boards with hole diameters of 71 millimeters. The adapters are available with eight leads. The adapters are of 1.57 millimeter FR-4 with one ounce of copper traces on both sides. The operating temperature is 105 degrees Celsius. For more information contact Aries Electronics by phone at 908-996-6841, or online at www.arieselec.com/products/18086.pdf.
Industrial terminal blocks
Officials of Blockmaster Blocks in Elk Grove Village, Ill., are introducing their Eagle series line of industrial terminal blocks. The Eagle has a rating of up to 85 amps and can reach 600 volts. The terminal block is available in PCB or panel mount version and is UL, CSA, or VDE approved. The units are tin plated over copper and some models have finger safe configurations, with color-coding and custom marking options available. For more information contact Blockmaster at 847-956-1680 or online at www.blockmaster.com.
VXS switch-fabric backplanes
Officials of Hybricon Corp. in Ayer, Mass., are offering a family of VXS switch-fabric backplanes that meet standards of the VME International Trade Association (VITA) in Fountain Hills, Ariz. Hybricon tests the backplanes to 320 megabytes per second per the VITA 1.5 2eSST standard. The boards are of a 20-layer low-noise stripline design, and the outside layers function as chassis ground electromagnetic interference shields. Stiffeners are in every two slots to ensure board rigidity. For more information contact Hybricon online at www.hybricon.com.
Rugged monitor enclosures
Bartley Machine in Amesbury, Mass., is offering custom-designed monitor enclosures that dissipate heat, provide electromagnetic shielding, seal out dust and water, and may even prevent vandalism, company officials say. The enclosure dissipates heat through fins, rather than through open vents, and locks access for maintenance. The enclosures are made from aluminum, and fit monitors as large as 60 inches. These enclosures were developed for the World Trade Center PATH station, where EMI from trains caused the monitor pictures to distort. The enclosures have NEMA 3 watertight enclosures. For more information contact Bartley online at www.bartleym.com.
Development platform for signal processing
Officials of Nallatech Inc. in Orlando, Fla., are offering the Xtreme DSP Development Kit–II as a development platform for high-performance digital-signal-processing applications such as software-defined radio, networking, high-definition television, and video imagery. Nallatech experts developed the tool kit in collaboration with Xilinx Inc. of San Jose, Calif. The kit includes on-board user-programmable Xilinx XC2V3000 field-programmable gate array, two 14-bit A-D converter channels with as many as 65 megasamples per second per channel, and two 14-bit D-A converters with as many as 160 megasamples per channel. For more information contact the company online at www.nallatech.com.
Industrial thin-film-transistor liquid-crystal displays
Officials of Optrex America Inc. in Plymouth, Mich., are offering a family of thin-film-transistor liquid-crystal display modules with antireflective surface treatment on the front polarizer to improve high-ambient-light legibility and image clarity. The antireflective coating is available on Optrex's 6.5-, 8.4-, and 12.1-inch displays for bright outdoor applications. The coating reduces the surface reflectivity of the display to about 0.3 percent, compared to 6 to 12 percent from normal antiglare displays. For more information contact Optrex at 734-416-8500, or online at www.optrex.com.
Wrap-around air filters
Universal Air Filter Co. in Sauget, Ill., is offering flame-resistant coatings for Quadrafoam filter media used to build the company's WrapAround Air Filters for military and aerospace electronics enclosures. The antimicrobial additives have a fungus growth of zero. These filters allow systems designers to configure filters with extended surface areas for minimal airflow resistance. The design integrates an aluminum or stainless-steel frame with reinforcing. For more information contact Universal Air Filter online at www.uaf.com.
Radio-frequency crystal oscillators
Fox Electronics in Fort Myers, Fla., is introducing two low-voltage crystal oscillators — the 2.5-V RFX250 and RFV250 series — for high-performance network applications such as SONET, ATM, SDH, Gigabit Ethernet, wide-area networks, and for timing reference in optical and data-communications systems. The devices feature low jitter and phase noise, which enables the full use of the allotted bandwidth with low incidence of bit-rate errors in optical data communications. The devices come in ceramic packaging, and operate in temperatures between 20 and 70 degrees Celsius. Extended operating temperature ranges of –40°C to 85°C are available. For more information contact the company online at www.foxonline.com.
2-gigabyte DDR SDRAM module
White Electronic Designs Corp. in Phoenix is offering a 2-gigabyte double-data-rate SDRAM solid-state memory chip. This device, which complies with the Joint Electron Device Engineering Council (JEDEC) standards, is for maximum-performance memory applications. The module consists of 18 256M-by-4 stacks in 66-pin TSOP packages mounted on a 184-pin FR4 substrate. The module is structured as two ranks of 128M-by-72 DDR SDRAM. Data I/O transactions are possible on both edges. For more information contact the company online at www.whiteedc.com.
Custom coaxial, triaxial, and RF cable
Aved Electronics Inc. in Lowell, Mass., is offering a custom-manufactured line of flexible coaxial, triaxial, and related RF cable assemblies that are tested to military specifications and are UL/CSA approved. The cables come with BNC, TNC, LC, SC, SMA, and n-type connectors, and can include 50- to 150-ohm cables. These cables have PTFE or PVC jackets, various types of insulation, and are watertight. They can be hand-soldered and certified to MIL-S-4543, MIL-STD-146-, and MIL-STD-2000. They can be packaged according to MIL-STD-129. For more information contact the company online at www.aved.com.
Rugged industrial PC
American ELTEC in Las Vegas is introducing a rugged computer for industrial and machine-control applications in harsh environments. The CyBox 8 is for operator consoles with flat-panel displays, and has a solid stainless-steel enclosure and intelligent environmental control system to ensure safe operation. The 2-GHz Pentium-4 Celeron processor and power supply operate in temperatures as hot as 50 degrees Celsius. The CyBox 8 integrates directly into the operator console, and users can hermetically seal its cover enclosure against the outside environment. The computer's hardware configuration has two independent Ethernet interfaces to separate the machine and control networks. It also supports operating systems such as Windows, Linux, OS-9, and VxWorks Tornado. For more information contact the company online at www.americaneltec.com.
Analyzer platforms with averager firmware
Acquiris USA in Monroe, N.Y., is offering dual-channel analyzer platforms with real-time signal-average firmware that enables users to create time-to-digital-converter (TDC) histograms that show the distribution of signal peak locations in the time domain. The TDC histogram function is embedded in the average firmware, which can be installed in the Acquiris AP240 or AP235 reconfigurable dual-channel PCI analyzer platforms. Once the new firmware is installed, the cards can act as dual-channel averagers, as dual-channel TDCs, or one channel can act as an averager while the other gathers the TDC histogram data. The platforms are for applications that acquire and analyze complex, noisy signals at very fast sampling rates, such as time-of-flight mass spectrometry, electron paramagnetic resonance, nuclear magnetic resonance, and magnetic-resonance imaging. For more information contact the company online at www.acquiris.com.
Rugged CompactPCI portable computer with six 6U slots
Acme Portable Machines Inc. in Azuza, Calif., is offering the ACP661 portable computer with CompactPCI enclosure and 15-inch thin-film-transistor liquid-crystal display, keyboard, and six 6U slots for the system boards or application-specific peripheral cards. The ACP661 is for portable server or workstation applications, as well as telephony, blade server, or in-field video editing applications. The backplane supports computer telephony specifications and meets the PICMG 2.1 hot-swap specification for fault-tolerant applications. The computer uses a CompactPCI server blade with Intel Pentium 4 processor-M that complies with compact packet switching backplane systems. For more information contact Acme Portable Machines at 626-610-1888, or online at www.acmeportable.com.
Mobile laptop computer for military and extreme environments
Getac Inc. in Lake Forest, Calif., is offering the MobilForce A770 notebook computer with recently awarded MIL-STD-471E certification for electromagnetic interference that defines the extreme environments found in military settings. Award of the military standard came from the U.S. Department of Defense. The computer also meets MIL-STD-810F for drop, vibration, and environmental extremes. This computer is for military, emergency services, public safety, law enforcement, or field maintenance. The A770 operates in temperatures -4 to 130 degrees Fahrenheit, weighs 12.5 pounds, and operates smoothly after drops from three feet onto hardened steel plating. For more information contact Getac at 949-699-2888, or online at www.getac.com.
VME gigabit Ethernet switch
GE Fanuc in Charlottesville, Va., is introducing a gigabit switch called the RM920, a managed-layer 2/3 switch for VME applications with wire-speed performance to speed quality-of-service processing, GE Fanuc's gigabit Ethernet switches reduce bottlenecks and prioritizes and secures traffic. The RM920's management software capabilities include quality of service on Layers 2/3 and 802.1p tag, deep packet filtering, link aggregation (802.3ad), spanning tree, rapid spanning tree protocol (RSTP), 802.1Q VLAN standard, broadcast storm control and port mirroring. All ports route to the front panel and can have mixed combinations of copper (RJ45) and fiber (LC) connectors. The device is available in two variants, the RM920 for applications with 10 ports of Gigabit Ethernet (single slot) or as many as 20 ports Gigabit Ethernet (dual slot), such as high-speed interconnects within a server-blade chassis or core switches in fault-tolerant clusters of embedded systems. For more information contact the company online at www.gefanuc.com/embedded.
