Rugged male straight and right-angle printed circuit board pins introduced by Mill-Max

OYSTER BAY, N.Y., 18 May 2016. Mill-Max Manufacturing Co. in Oyster Bay, N.Y., is introducing the 37XX series of straight and right angle male printed circuit board pins for plugging into receptacles and soldering into boards.

May 18th, 2016
By Mil & Aero staff
By Mil & Aero staff

OYSTER BAY, N.Y., 18 May 2016. Mill-Max Manufacturing Co. in Oyster Bay, N.Y., is introducing the 37XX series of straight and right angle male printed circuit boardpins for plugging into receptacles and soldering into boards.

In addition to the .02-, .025-, .03-, and .04-inch diameters available, these pins offer diameters of .06 and .08 inches.

The new .06- and .08-inch-diameter pins are a good fit for applications demanding high mechanical strength or to meet high-current requirements.

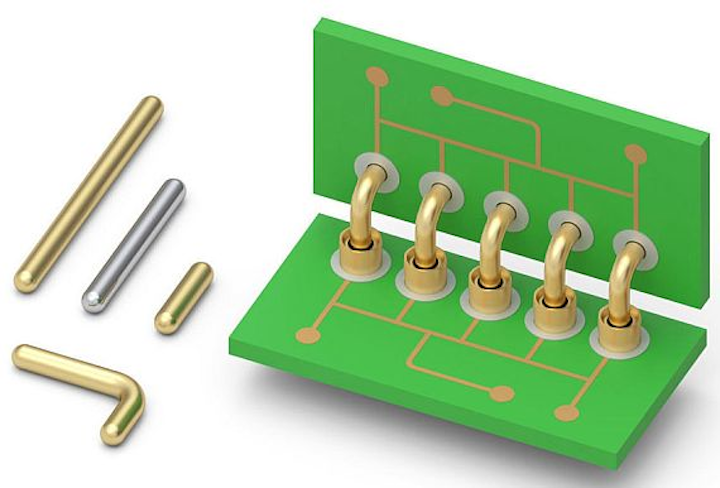

The 37XX series is for circuit board designs that require a right-angle connection. Designers can solder them onto a daughter card and plug them into receptacles or connectors on a motherboard for perpendicular board mating.

Related: Spring-loaded right angle and horizontal SMT connectors for mating boards offered by Mill-Max

Designers also can combine the pins with right-angle receptacles or connectors to mate boards in parallel (daisy chaining). These brass pins are precision-machined and are closely monitored to produce pins with consistent bends each time. The tips of the pins have a full radius shape making them easy to plug into board holes or receptacles.

The series 35XX straight pins come in three lengths -- .25, .5, and .75 inches -- and are available in diameters of .06 and .08 inches. The standard plating option is 10 micro inches gold over nickel. Other plating options are available on request.

For more information contact Mill-Max online at www.mill-max.com.
