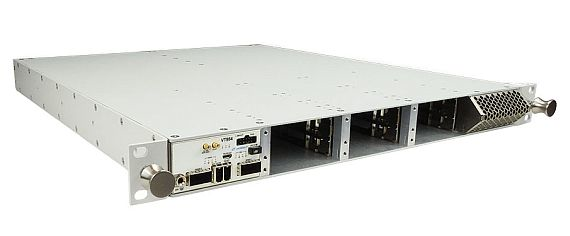

The lightweight aluminum chassis construction provides six single-module mid-size Advanced Mezzanine Card (AMC) slots. For front-panel retention, there is one MicroTCA.1 screw on the opposite side of the ejector handle on each module slot.
The chassis offers dual redundant power supply units, hot-swappable from the rear of the chassis. In addition, the VT954 is designed to meet vibration specification MIL-STD-167-1A (Type 1) and shock class I as defined by MIL-S-901D.
The chassis comes equipped with provisions for rails for rackmount environments. The front-to-rear cooling of the chassis uses the VadaTech 3rd generation MCH (UTC004 product) for its shelf manager, crossbar clocking for low jitter, and GPS/IEEE1588/SyncE/NTP.
The rugged VT954 has dual 10 and 40 Gigabit Ethernet as well as dual Gigabit Ethernet to each slot. There are also dual QSFP+ to the front panel. The VT954 backplane provides direct connection between adjacent AMC slots on ports 2-3 and on ports 12-20.
For more information contact VadaTech online at www.vadatech.com.
