High-frequency probes for printed circuit board test and measurement introduced by ECT
FONTANA, Calif. – Everett Charles Technologies (ECT) is introducing two high-frequency test probes for printed circuit board assembly test and measurement applications.

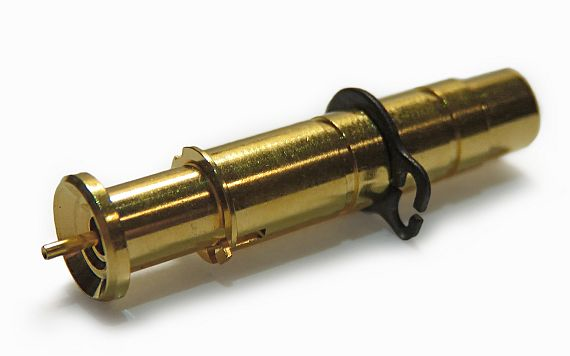

The CSP-40A-024 and CSP-40G-021 radio frequency (RF) probes are designed to mate to industry-standard connectors such as MMCX, Fakra, SMBm and U.FL.
The CSP-40 coaxial probes provide an interface for broadband RF measurements in excess of 6 GHz, and provide a solution for high-volume board testing.
The CSP-40 series offers signal integrity and is capable of bandwidth measurements in excess of 6 GHz at -1dB. The CSP-40 probes enable high frequency functional tests in high-volume testing and engineering lab environments. The probes provide consistent 50 Ohm impedance for repeatable measurements.
The CSP-40A-024 and CSP-40G-021 provide spring-loaded compliance for the center-signal probe and outer housing that provides ground contact. The articulated contact allows for correction of targeting errors.
The CSP-40 series features a rugged design for inline applications and an easy-to-replace center conductor probe for circuit board testing. The adjustable snap ring feature ensures easy and reliable mounting.
For more information contact ECT online at https://ect-cpg.com.
