    CompacFrame Type 39A, up to 5 slots, VITA 48.8 AFT

    Sept. 21, 2022
    Elma’s all new CompacFrame platform accelerates the development and test of 3U plug-in-cards (PICs) designed according to VITA 48.8, Air Flow Through Cooling standard. The 3U card cage in the platform is tilted upwards by 5° for easier card access.
    Related To: Elma Electronic

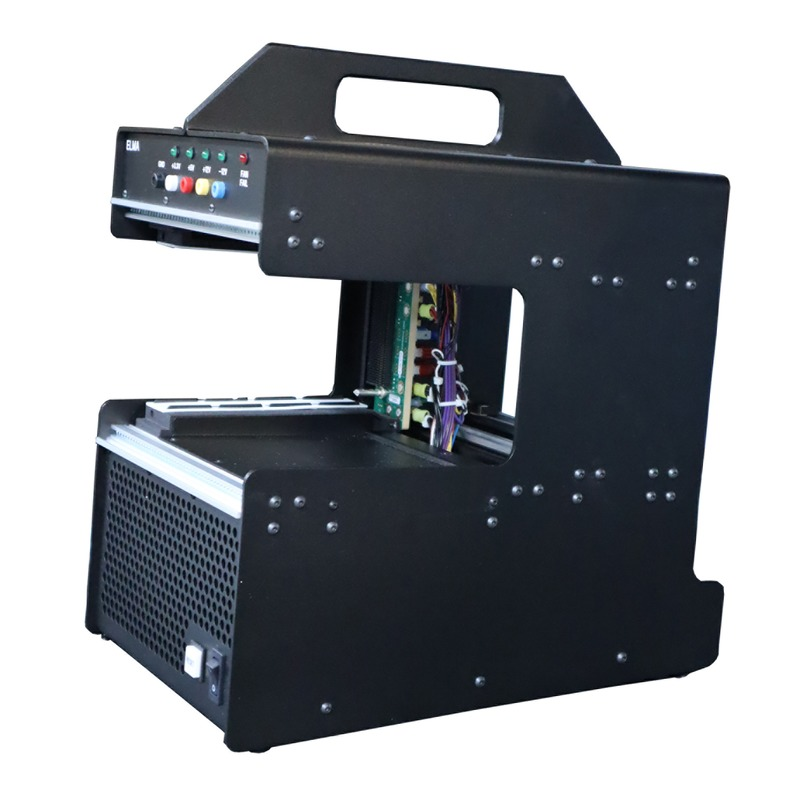

    Type39 A Compac Frame Vita488 Af Tsideview
    •  Accommodates up to five 1-slot VPX power & ground only backplanes
    •  3U Rear RTM Slots available
    •  1400W ATX PSU standard, with option to replace with 3U VITA 62 plug-in power supply
    •  Integrated carry handle & 5º upwards tilt to card cage
    •  Front panel voltage monitoring LED’s and test points
    •  Front panel reset and power switches
    •  Rear accessible VITA 46.11 compliant Shelf Manager
    •  Battery for VBAT connection
    •  Optional plug-in VITA 46.11 compliant Shelf Manager (ChMC)
    •  Accommodates 3U modules according to VITA 48.8

    Datasheets

    CompacFrame Type 39A up to 5 Slots Datasheet (en)
