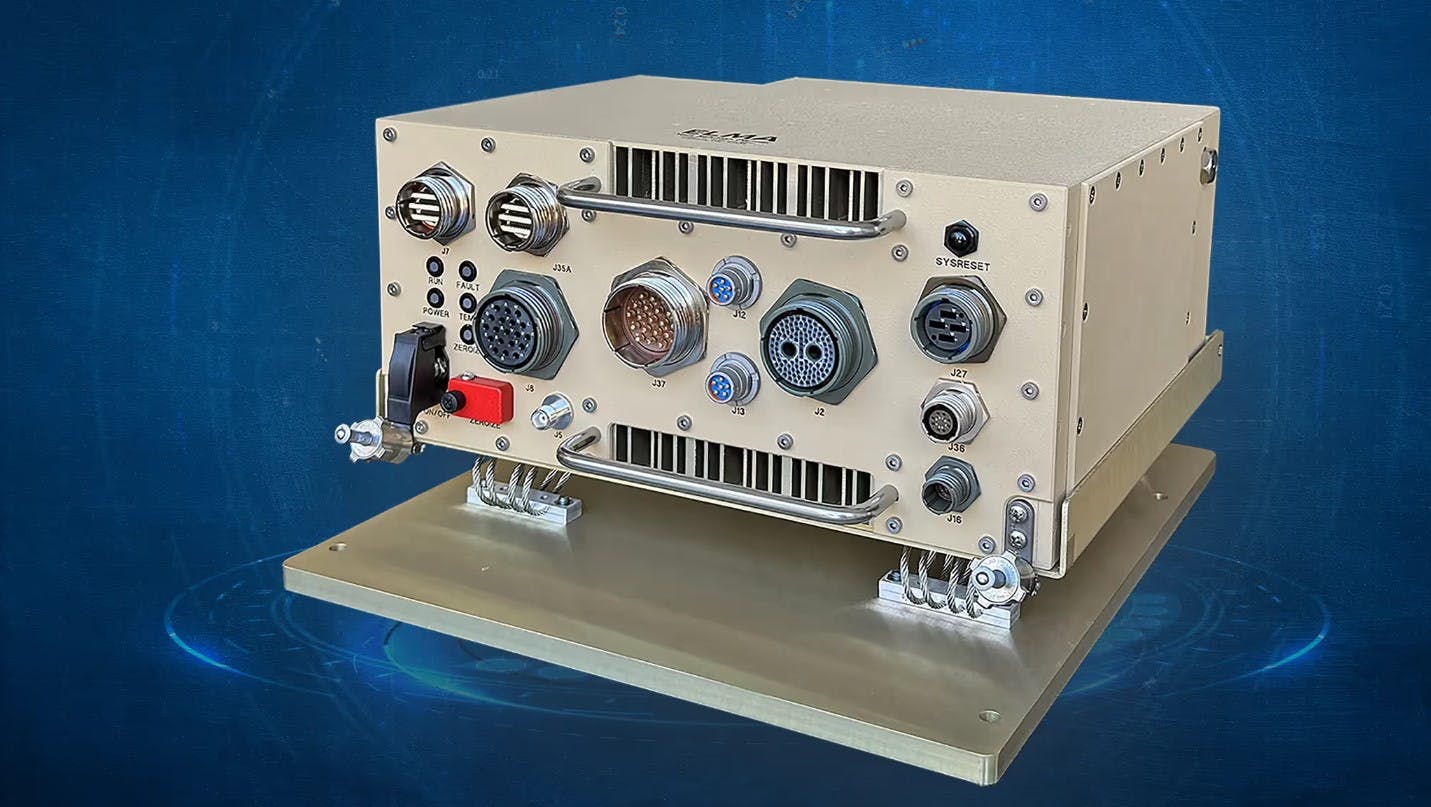

Rugged deployable CMFF chassis aligned to SOSA® with SAVE tray

CMOSS Modular Form Factor (CMFF) field-deployable chassis, with Standard A-Kit Envelope (SAVE) tray. Includes a 7-slot 3U VPX backplane, chassis manager, and VITA 62 power supply. Meets MIL-STDs for shock, vibration, and other environmental standards.

• Rugged CMOSS Mounted Form Factor (CMFF) chassis supports VICTORY and MORA. It is aligned with the SOSA® Standard and designed for C5ISR, EW and EO/IR applications.
• Fits Standard A-Kit Vehicle Envelope (SAVE)
• 3U 7 Slot 25Gb dual domain SOSA aligned VPX backplane, Built specifically for C5ISR applications.
• Conduction-Convection cooled with VITA 48.2 conduction cooled slots
• Supports 3U VPX plug-in cards (PICs) aligned to SOSA Profiles - ask us about payload integration options - Compute-Intensive, IO-intensive processors; Ethernet switch cards; PNT cards; RF cards, storage cards; GPGPU cards, etc.
• VITA 46.11 Tier 2/3 out of band (OoB) chassis manager
• Rugged front panel I/O connectors for external user interfaces
• Single VITA 62 28V DC plug-in power supply included and EMI filter
• Meets harsh environmental standards: MIL-STD-810G, MIL-STD-461E, MIL-STD-1275E
