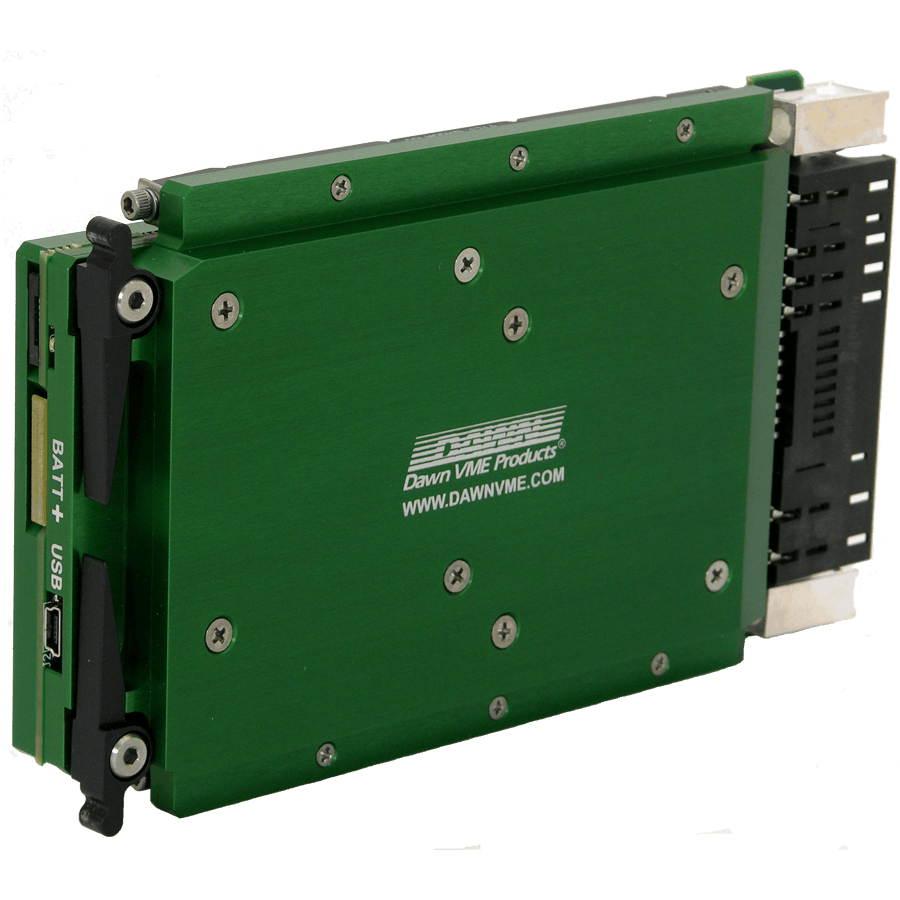

Dawn PSC-6238 3U 800W 28VDC Input Conduction Cooled

    Feb. 13, 2024
    3U VITA 62 OpenVPX. Wide temperature range at high power levels. Extended shock and vibration compliant. Switchable Battleshort and NED functions.
    Related To:
    65cbaf29ccf2c3001e18f6d4 Psc6238
    The PSC-6238 is designed to operate in a military environment over a wide range of temperatures at high power levels, is extended shock and vibration compliant per MIL-STD-810F and features an onboard real-time clock with switchable Battleshort and NED (Nuclear Event Detect) functions.

    Dawn’s embedded RuSH™ Rugged System Health Monitor technology provides for intelligent monitoring and control of critical system performance parameters including voltage, current, temperature and control of power sequencing and shutdown of all voltage rails.

    • Wedge lock conduction cooled 3U module.
    • Operating temperature of -40°C to +85°C at the wedge lock edge.
    • Up to 800 Watts power output with 1 inch pitch form factor.
    • True 6 Channel supply provides full OpenVPX support.
    • I2C interface for Status & Control.
    • USB port for status display, access menu control and firmware upgrade.
    • Current/load share compatible with up to 4 PSC-6238 units.
