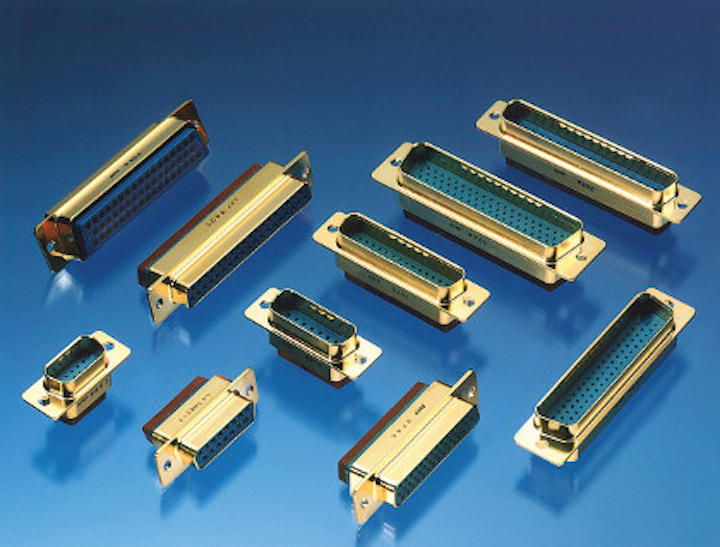

TE's AMPLIMITE Ultra-Lite connectors meet NASA 311P requirements for space, and the connector's one-piece aluminum shell design not only offers advantages in weight and EMI performance when compared to standard brass connectors.
AMPLIMITE Ultra-Lite connectors deliver a 10-20 dB improvement in EMI performance and meet the requirements for M24308. The non-magnetic connector features a one-piece lighter weight aluminum shell. The connector can be mated with other D-Subminiature connectors, comes in shell sizes one through six and is offered in both standard- and high-density configurations.
The connector has a temperature range of -55C to 125C, and can be ordered in vertical and right-angle PCB mount versions. Combination connectors with both power and signal contacts are also available, as is a rear grommet for strain relief.
For more information on AMPLIMITE Ultra-Lite D-Subminiature connectors,visit TE Connectivity here.
