ELMSFORD, N.Y. – ITG Electronics Inc. in Elmsford, N.Y., is introducing a line of trans-inductor voltage regulators (TLVRs) for high-reliability industrial-grade power electronics applications.
These TLVRs include the company's AHA series of TLVT coupling inductors, the L10142 series, and SLA2843B series compensation inductor in the LC circuit of TLVR application.

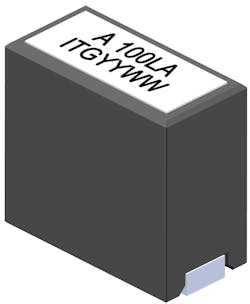

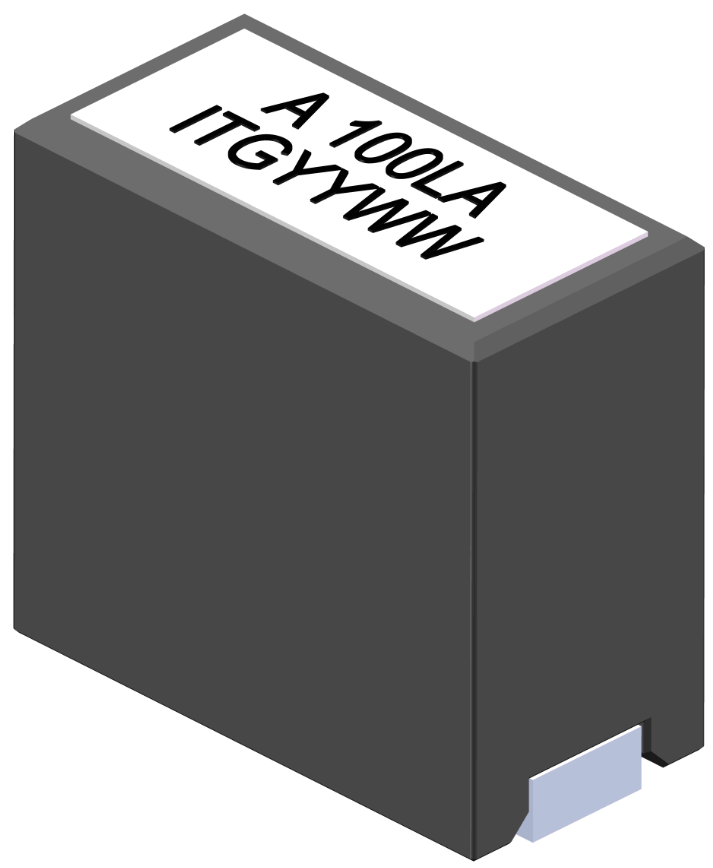

The AHA3740A is a ferrite-based TLVR inductor with low core loss and an inductance range of 70-150 nanohenries, with customized values possible. The product offers high current output chokes as strong as 125 amperes with approximately 20 percent roll-off.
The compact component has a maximum height of 10 millimeters, and measures 9.6 by 6.4 millimeters. The narrowed body version TLVR inductor such as AHA40475A and AHA47475A series are developed for future 4-by-6-millimeter powerstages applications.
The SLA2843B is a ferrite-based SMD inductor with low core loss for LC power rails in TLVR circuit designs. The component's inductance range is 60 to 420 nanohenries, with customization possible. Offering high current output chokes as strong as 165 amperes with approximately 20 percent roll off, the SLA2843B has a maximum height of 11 millimeters and measures 7 by 6.7 millimeters.
For more information contact ITG Electronics online at www.itg-electronics.com/category/1.
