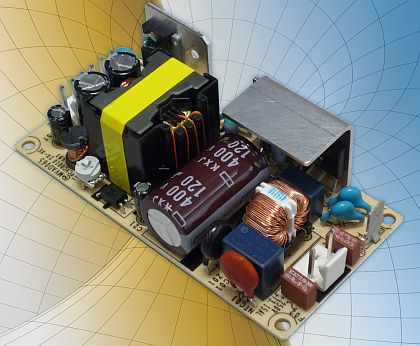

MANSFIELD, Mass., 2 Sept. 2013. Murata Power Solutions in Mansfield, Mass., is introducing the MVAD040 and MVAD065 40- and 65-Watt convection-cooled AC-DC power supplies for a wide range of high-volume applications such as industrial factory automation, medical and health care appliances, data storage, and networking.
The devices comply with the 3rd edition medical safety standard, and are packaged in the industry standard 2-by-4-inch format with a low profile, 1U compatible 1.3 inch height.
As much as 90 percent efficient, the MVAD040 and MVAD065 do not require additional heat sinking or forced-air cooling to operate at full output power. No-load power consumption is less than 0.3 Watts which meets ErP and Energy Star requirements.
Accepting the universal input voltage range from 90 to 264 volts AC, each model is available with a 12-, 24-, or 48-volt DC output. Operating temperature startup is as low as –20 degrees Celsius.
MVAD065 features remote sense which compensates for lead losses up to 0.4 VDC at the load point. The supplies also meet the IEC/EN60950-1 safety standard for IT equipment. The MVAD series has a mean time between failures of one million hours.
For more information contact Murata Power Solutions online at www.murata-ps.com.
