Industrial circular connectors with overmolding and IP40 protection for medical devices introduced by Binder
April 5, 2024
Related To: Binder-USA

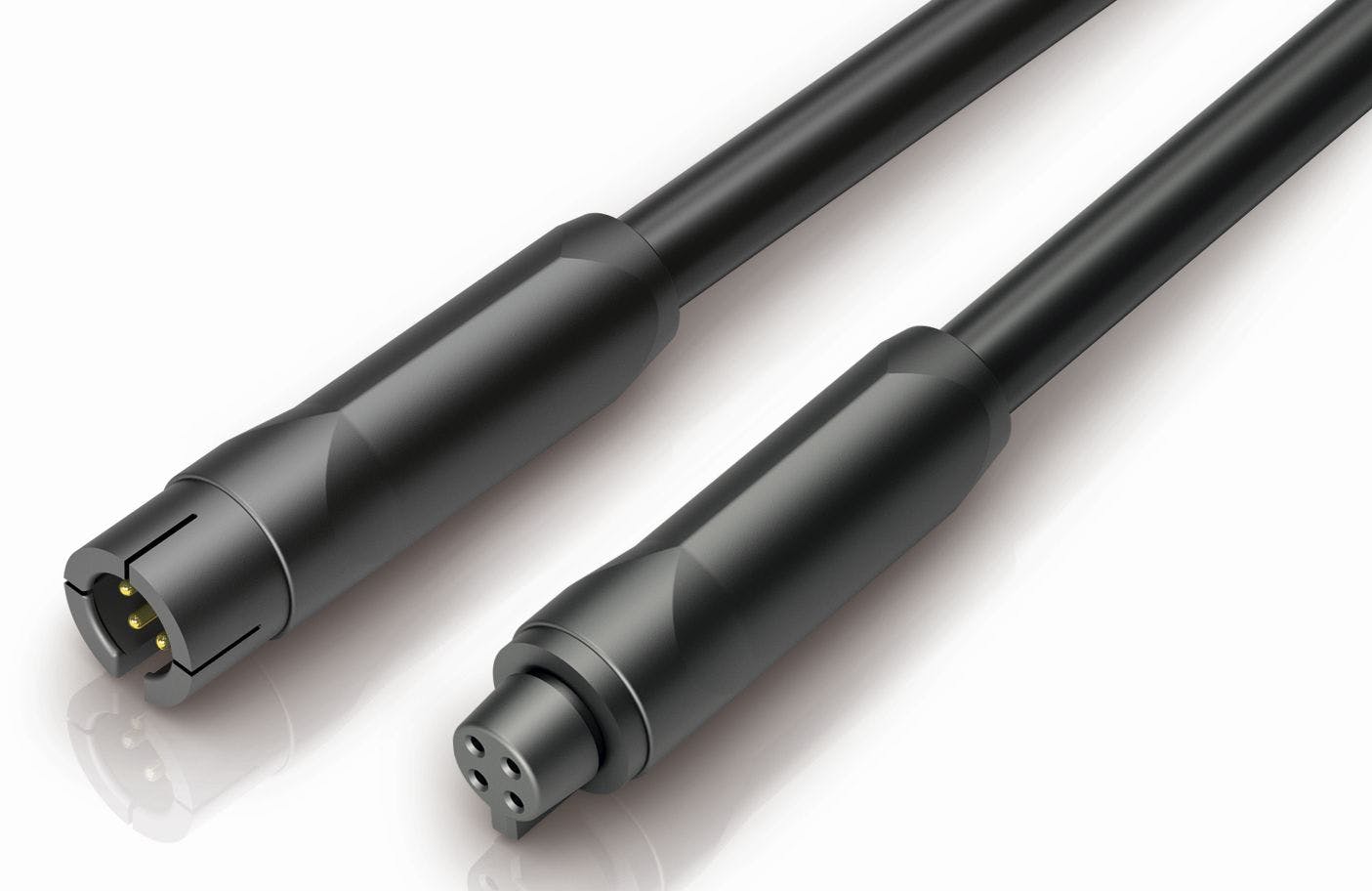

CAMARILLO, Calif. – Binder USA in Camarillo, Calif., is introducing the company's 709- and 719-series industrial circular connectors with an overmolding for the straight versions for metrology and medical device-applications.
The connectors feature snap-in locking, offer high retention forces measured against their size, and mate and unmate quickly.
The connectors offer IP40 protection degree; 3- to 5-pin count; dip soldering terminations; 60-volt operation at 3 amps rated current; operate in temperatures from -25 to 70 degrees Celsius; and operate through more than 100 mating cycles.
Related: Aerospace and defense applications drive connector and cabling innovation
Metering and handheld operating devices in hygiene-critical application areas like medical equipment, and offers overmolding that supports single-handed mating and unmating.
The 709 and 719 snap-in series offer a fast and secure locking system, with male and female cable connectors with or without strain relief. The 3-to-5-pole series offer wire gauges to 0.25 square millimeters to AWG 24, and soldering or dip soldering termination.
For more information contact Binder USA online at www.binder-usa.com/us-en.
