Waveguide transmission components for radar, SATCOM, and airport security uses introduced by Fairview

IRVINE, Calif. – Fairview Microwave Inc. in Lewisville, Texas, is introducing a line of waveguide transmission components for radar, satellite communications (SATCOM), and airport security applications.

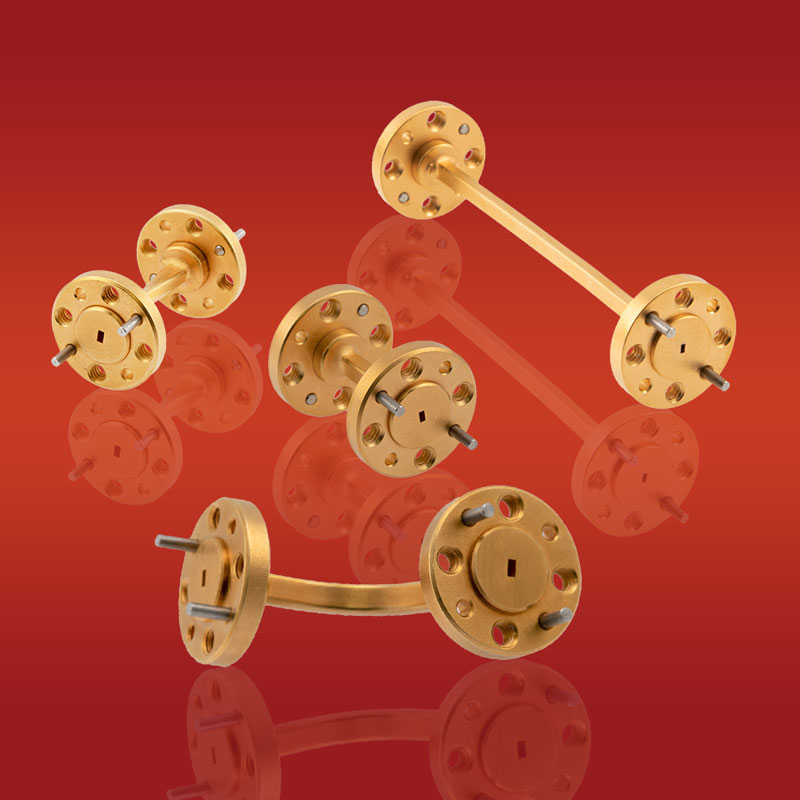

Fairview's waveguide bends, twists, and straight sections feature high-frequency ranges from 90 GHz to 220 GHz in three waveguide bands.

These components include waveguide sizes of WR-8, WR-6 and WR-5 and UG-387/U mod round cover style flanges. The waveguide bends are available in 90-degree E-plane and 90-degree H-plane configurations.

The waveguide twists for RF and microwave uses are available in 90-degree, 45-degree right-hand, and 45-degree left-hand configurations. And the waveguide straight sections are available in 1-, 3-, 6-, 9- and 12-inch lengths. All have high frequency waveguide components feature low voltage standing wave ratio (VSWR) performance of 1.15:1 typical.

For more information contact Fairview Microwave online at www.fairviewmicrowave.com.
