RF and microwave 2.5 GHz phase locked clock source for avionics and radios introduced by Crystek

    Sept. 23, 2015
    FORT MYERS, Fla., 23 Sept. 2015. Crystek Microwave Corp. in Fort Myers, Fla., is introducing the CRFS75-2500 2.5 GHz phase locked clock source RF and microwave module with internal reference for avionics, point-to-point radios, test and measurement, and A/D converters.
    RF and microwave 2.5 GHz phase locked clock source for avionics and radios introduced by Crystek
    RF and microwave 2.5 GHz phase locked clock source for avionics and radios introduced by Crystek
    FORT MYERS, Fla., 23 Sept. 2015. Crystek Microwave Corp. in Fort Myers, Fla., is introducing the CRFS75-2500 2.5 GHz phase locked clock source RF and microwave module with internal reference for avionics, point-to-point radios, test and measurement, and A/D converters.

    Crystek engineers designed the module using proprietary circuitry and surface acoustic wave (SAW) resonator technology to provide ultra-low jitter and phase noise performance with true sinewave output. The resulting source features -105 dBc/Hz phase noise at 10 KHz offset and a noise floor of -167 dBc/Hz.

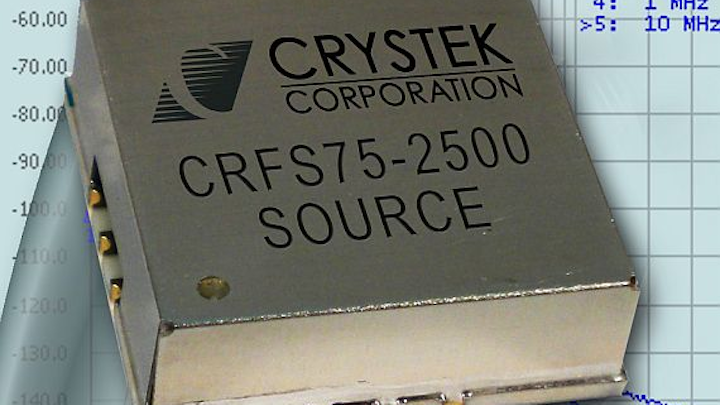

    Crystek's CRFS75-2500 comes in a 0.75-by-0.75-inch SMT package. With 5-volt input voltage, it generates a true-sinewave with +5 dBm minimum output power.

    The new source has no sub-harmonics; second harmonic is -20 dBc typical. Frequency stability is rated at +/- 25 ppm. The CRFS75-2500 operates in temperatures from -20 to 70 degrees Celsius.

    Related: True sinewave clock oscillators for low-noise RF performance introduced by Crystek Crystals Corp.

    For more information contact Crystek online atwww.crystek.com.
