RF and microwave directional coupler for EW, SATCOM, and radar introduced by KRYTAR

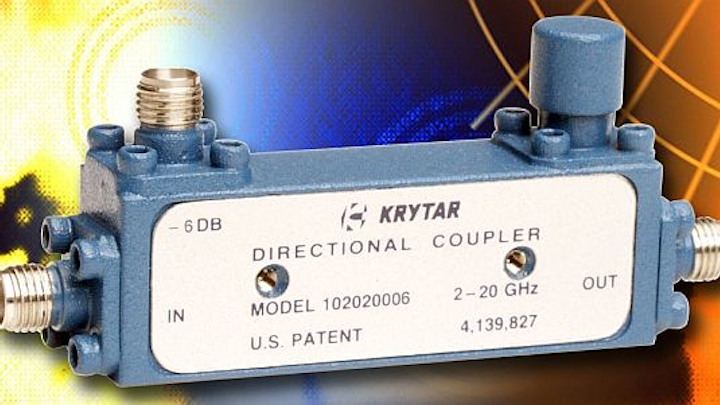

SUNNYVALE, Calif., 26 June 2015. KRYTAR Inc. in Sunnyvale, Calif., is introducing the model 102020006 RF and microwave directional coupler that offers 6 dB of coupling over the frequency range of 2 to 20 GHz in a compact and lightweight package.

By Mil & Aero staff
By Mil & Aero staff

SUNNYVALE, Calif., 26 June 2015. KRYTAR Inc. in Sunnyvale, Calif., is introducing the model 102020006 RF and microwave directional coupler that offers 6 dB of coupling over the frequency range of 2 to 20 GHz in a compact and lightweight package.

Applications for the directional coupler include electronic warfare (EW), commercial wireless, SATCOM, radar, signal monitoring and measurement, antenna beam forming, and EMC testing.

The 102020006 enhances the selection of multi-purpose, stripline designs for systems applications where external leveling, precise monitoring, signal mixing, or swept transmission and reflection measurements are required.

KRYTAR couplers offer solutions for many applications including For many space-restricted applications the compact size makes KRYTAR directional couplers solutions.

The 102020006 offers performance ratings including nominal coupling (with respect to output) of 6 dB, plus-or-minus 1.0 dB, and frequency sensitivity of plus-or-minus 0.35 dB. The directional coupler exhibits insertion loss (including coupled power) of less than 1.9 dB, directivity of greater than 16 dB.

Related: Mil-spec RF and microwave directional coupler for electronic warfare introduced by KRYTAR

The maximum voltage standing wave ratio (VSWR) in any port is 1.35, input power rating is 20 Watts average and 3 kilowatts peak. The directional coupler comes with industry-standard 2.4-mm SMA female connectors.

It measures 2.08 by 0.69 by 0.53 inches and weighs 1.7 ounces. Operating temperature is -54 to 85 degrees Celsius. This directional coupler also can be manufactured to meet military specifications.

For more information contact KRYTAR online at http://krytar.com.
