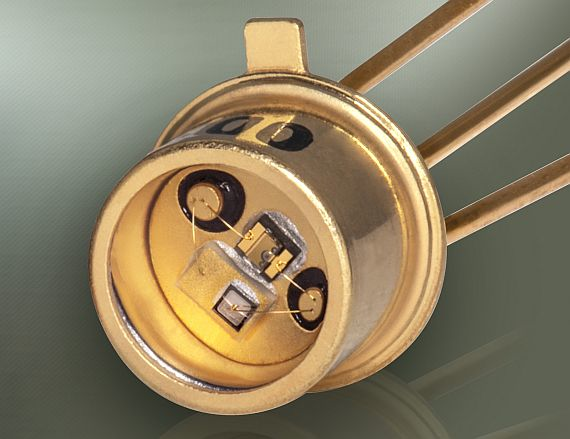

CAMARILLO, Calif. – Opto Diode Corp. in Camarillo, Calif., is introducing the OD-265-001 ultraviolet light-emitting diodes (UVLEDs) for disinfection applications.
The OD-265-001 narrow-spectral output ultraviolet light-emitting diode is for long-lifetime use. The device has include total power output of 0.53 milliwatts (minimum) and 0.68 milliwatts (typical), with peak emission wavelengths at 260 nanometers (minimum), 265 nanometers (typical) and 270 nanometers (maximum).
The OD-265-001's spectral bandwidth at 50 percent is typically 13 nanometers. The half-intensity beam angle measures 70 degrees, with forward voltage typically at 5 volts, and a maximum of 6.5 Volts; capacitance is typically 350 picofarads.
Thermal parameters for this light-emitting diode include storage temperature ranges of -40 to 100 degrees Celsius. The operating temperatures range from -30 80 C. The OD-265-001 UVLED is housed in a hermetically-sealed TO-46 package for integration into or existing systems.
For more information contact Opto Diode online at www.optodiode.com.
