AC-DC power supply with transient protection for robotics and machine control introduced by TDK-Lambda

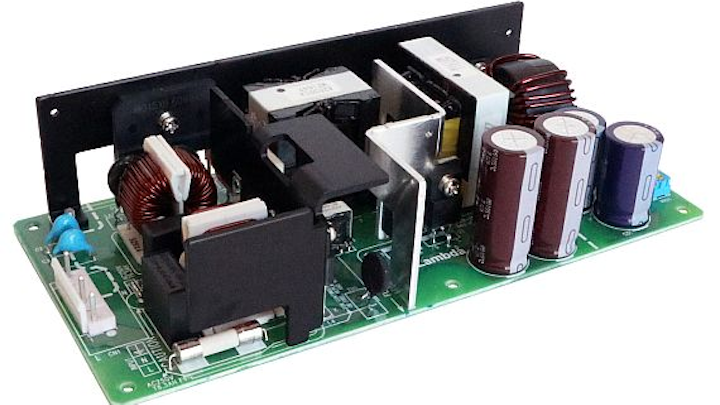

SAN DIEGO – TDK-Lambda Americas Inc. in San Diego is introducing the ZWS240RC-24 AC-DC power supply for robotics and other machine control that require protection from incoming input voltage line transients.

Mar 23rd, 2018
By Mil & Aero staff
By Mil & Aero staff

SAN DIEGO – TDK-Lambda Americas Inc. in San Diego is introducing the ZWS240RC-24 AC-DC power supply for robotics and other machine control that require protection from incoming input voltage line transients.

The ZWS240RC-24 is rated at 240 Watts output power. Certification to over voltage category (OVC) III enables direct connection to the incoming AC distribution panel, saving the cost and space of an isolation transformer.

The ZWS240RC-24 accepts an 85 to 265 volts AC input and can operate convection cooled in ambient temperatures as high as 70 degrees Celsius, derating linearly above 50 C by 3.5 percent per degree Celsius.

The 24-volt output is adjustable from 21.6 to 26.4 volts to accommodate non-standard voltages. Overall product dimensions are 84 by 42 by 180 millimeters.

Related: Industrial-grade AC-DC power supplies for test and measurement introduced by TDK Lambda

Typical hold-up times are 31 milliseconds, providing additional protection against extended input voltage dips. The power supply is certified to IEC/EN62477-1 OVC III, IEC/EN/UL/CSA 60950-1 with CE marking for the low voltage, EMC and RoHS2 directives.

The model also complies to EN 55011, EN 55032 Class B conducted and Class A radiated emissions, EN 61000-3-2 harmonics and IEC 61000-4 immunity standards.

For more information contact TDK Lambda Americas online at www.us.tdk-lambda.com.
