Rackmount rugged data recorder for surveillance and SIGINT introduced by Pentek

UPPER SADDLE RIVER, N.J. – Pentek Inc. in Upper Saddle River, N.J., is introducing the model RTR 2745 rugged rackmount data recorder to capture and reproduce signal bandwidths to 560 MHz for electronic surveillance, signals intelligence (SIGINT), and test and measurement applications.

Jul 31st, 2017
By Mil & Aero staff
By Mil & Aero staff

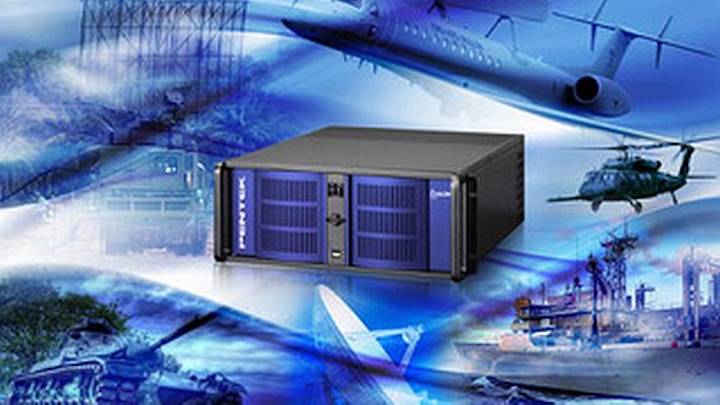

UPPER SADDLE RIVER, N.J. – Pentek Inc. in Upper Saddle River, N.J., is introducing the model RTR 2745 rugged rackmountdata recorder to capture and reproduce signal bandwidths to 560 MHz for electronic surveillance, signals intelligence (SIGINT), and test and measurement applications.

The data recorder, optimized for rugged operating environments, is a turnkey, wideband recording and playback system that provides real-time capture of RF and IF signals.

With two 3 GHz 14-bit A/D converters and built-in digital down-converters (DDCs), the system is for capturing the IF outputs of RF downconverters with bandwidths as high as 600 MHz. Selectable DDC tuning frequencies allow the RTR 2745 to accommodate a broad range of IF outputs.

Two output channels with 2.8 GHz 16-bit D/As and matching digital upconverters (DUCs) provide a fixed interpolation of 4 to allow for precise signal reproduction of recorded signals.

Related: Extreme-environment data recorders for aerospace and defense introduced by Pentek

The 3 GHz A/Ds can operate without the digital downconverters to provide an extremely wide baseband capture. The system offers flexible sample rates ranging from 1.5 GHz to 3.0 GHz.

The RTR 2745 offers a storage capacity of as much as 61 terabytes, using as many as 32 hot-swappable solid-state drives (SSDs) that can be removed or exchanged during a mission to retrieve recorded data.

For more information contact Pentek online at www.pentek.com.
