Right angle solder cup header for wire-to-board terminations with right-angle tails introduced by Mill-Max

Sept. 6, 2018

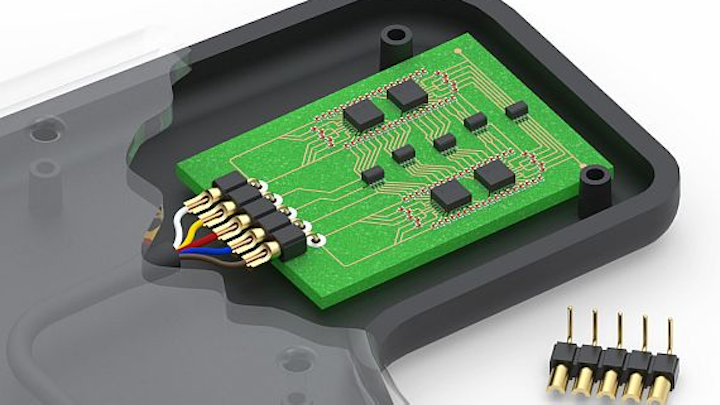

OYSTER BAY, N.Y. – Mill-Max Mfg. Corp. in Oyster Bay, N.Y., is introducing the 380-10-1XX-10-003000 right angle solder cup header to simplify wire-to-board terminations.

OYSTER BAY, N.Y. – Mill-Max Mfg. Corp. in Oyster Bay, N.Y., is introducing the 380-10-1XX-10-003000 right angle solder cup header to simplify wire-to-board terminations.

These solder cup headers expedite the soldering process and reduce overall assembly height by eliminating the need to bend wires or cables for in-line connections.

The 380-10-1XX-10-003000 right angle headers are for situations where space is limited, and where designers cannot manipulate wires easily. The solder cups are uniformly aligned to facilitate efficient soldering -- especially useful for terminating cables.

The cups can accept up to 22 AWG stranded wire. Rotation limiting features built into the insulator and pins keep solder cups and right-angle tails in place during soldering and termination processes.

These are single-row connectors with 0.1-inch pin spacing and 0.02-inch diameter tails suitable for mating with a variety of sockets or terminating directly to a printed circuit board.

Related: Target connectors for low-profile circuit board applications introduced by Mill-Max

They deliver an above-board profile of 0.1 inches when soldered directly to the circuit board and when mated with Mill-Max low-profile board mounted sockets 315-XX-1XX-41-003000 for a total interconnect height of .175 inches.

They also can also mate with Mill-Max standard solder cup sockets 329-XX-1XX-41-540000 for use in wire termination applications such as cable assemblies. The insulator material is high-temperature PCT polyester with an HDT of 230 degrees Celsius to withstand most soldering processes.

The solder cup pins are precision turned from brass alloy and are gold plated to provide interconnect reliability, corrosion protection, and wear resistance. Connectors are available from 1-64 positions.

For more information contact Mill-Max online at www.mill-max.com.
